HP Scitex (X)XX00 - Overview

Supported models

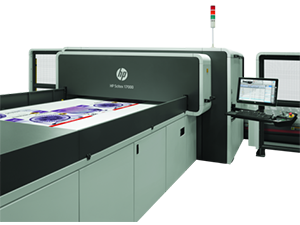

HP Scitex 9000/11000/15500/17000

• Industrial press with HDR technology
• LED curing unit, mat-covered vacuum table, and special handling system (corrugated grip)
• Check HP's support site to learn more about these models

Drivers

• HP-Scitex-9000
• HP-Scitex-11000
• HP-Scitex-15500
• HP-Scitex-17000

Driver history

• CalderaRIP V12.1:
  • Revision A: Fixed transmission issues between the RIP and the HP controller, which sometimes resulted in missing previews or job rejections due to "corrupted" separation files. An option for "Safe Transfer" has been added to address any ongoing transmission problems.
• CalderaRIP V10.2
  • HP-Scitex-9000 / 11000 / 15500 supported since this version
• CalderaRIP V10.1
  • HP-Scitex-17000 supported since this version

Inks

Connection

	USB
	File
	Network
	Serial

 Tips & tricks

How to configure the connection and synchronize the media?

To avoid synchronization problems with these printers, the input and output folders must be correctly configured in ServerAdmin.

Click on the module and then select your printer, another pop-up will then open:

Connection tab	Files tab

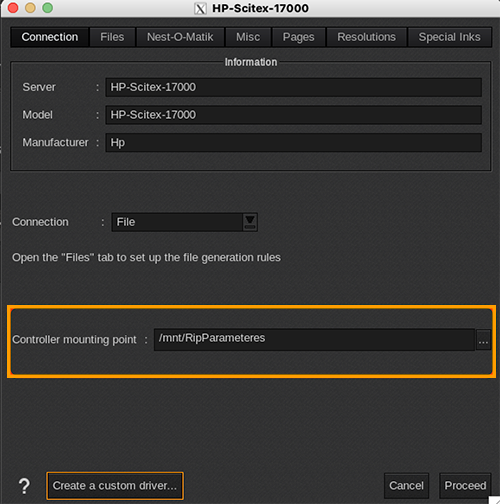

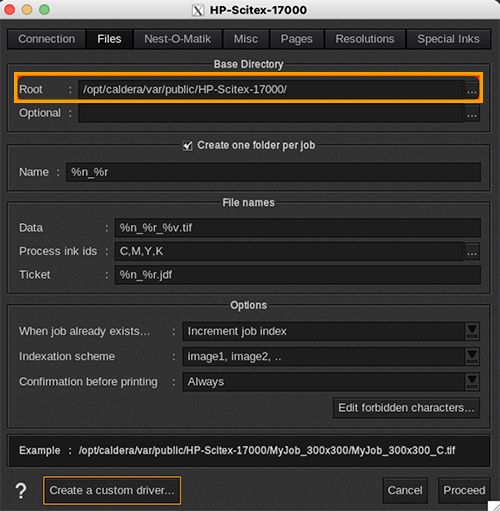

Controller mounting point: This is the path for the shared folder with the input RipParameters.xml file (coming from the printer controller)	Root: This is the path for the shared folder with output ripped files (coming from the CalderaRIP)

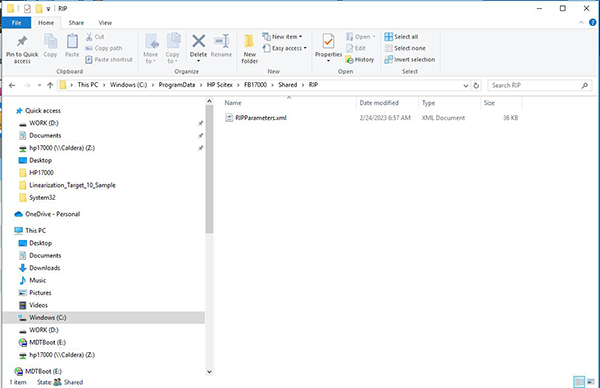

Example of RIPParameters.xml file location:
