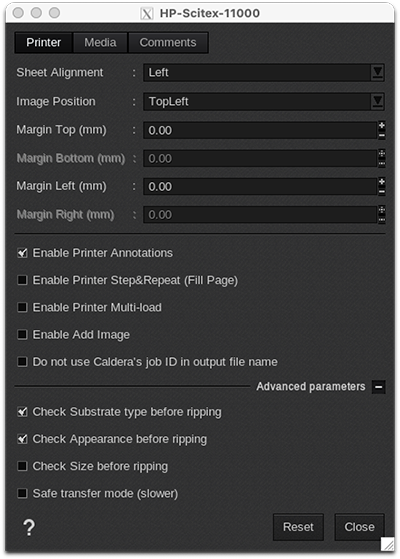

Printer tab

• Sheet alignment
  • 9000: Top left (default), top center, top right, center left, center center, center right, bottom left, bottom center, or bottom right
  • 11000 / 15500 / 17000: Left (default) or right
• Image position
  • 9000: Not available
  • 11000 / 15500 / 17000: Top left (default), top center, top right, center left, center center, center right, bottom left, bottom center, or bottom right
• Margin Top (mm) / Margin Bottom (mm) / Margin Left (mm) / Margin Right (mm): Choose a value between -10000.00 and 10000.00
• Enable Printer Annotations
• Enable Printer Step&Repeat (Fill Page)
• Enable Printer Multi-load
• Enable Add Image
• Do not use Caldera's job ID in the output file name

Advanced Parameters

• Check Substrate type before ripping (checked by default)
• Check Appearance before ripping (checked by default)
• Check Size before ripping
• Safe transfer mode (slower)

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Vardot: It is possible to override the size of the dots selected by default according to each resolution. By default, this function is disabled, which means that CalderaRIP is already using the best variable droplet mixture for printing. If you feel comfortable and you need to build a new media profile, you can override the resolution values with the options that each driver displays in this part.
• Substrate name
• Sheet Size
• Ink consumption correction factor (%). Select a value between 100% and 200%
• Rosettes Screening (disable by default)
  • Cluster size. Select a value between 3 and 20.
• Force Substrate. Some substrates are already preloaded into the driver and the rest come from the EasyMedia module.
• Force Sheet Size. Information comes from the EasyMedia module.

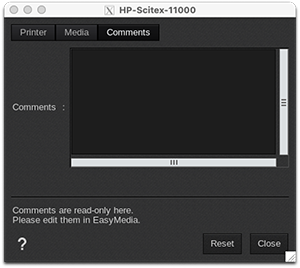

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
