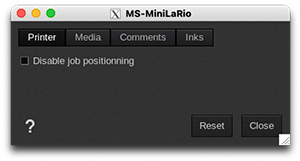

Printer tab

• Disable job positioning: When this setting is checked, no position is sent to the controller so the job needs to be positioned on the printer.

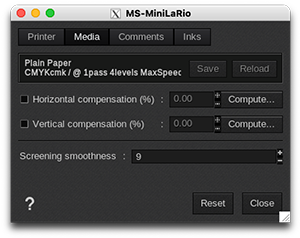

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Screening smoothness: Choose a value between 0 and 10 to change the screening graininess.

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

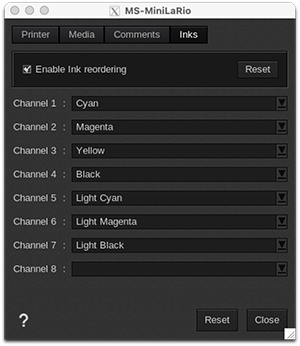

Inks tab

• Enable Ink reordering: if you see that the color channels of your printer seem mixed up, you can enable the ink reordering. For each channel, specify the right color.
