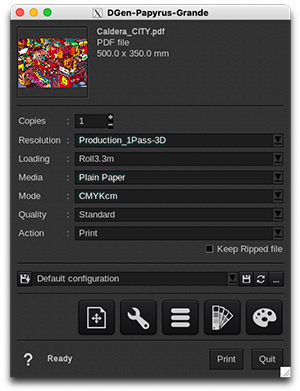

Dgen Papyrus Grande (Pro) - Print Module Interface

Updated March 29, 2023 14:40

Resolution

Papyrus Grande

Production 1Pass-3D
Production 2Pass-3D
Production 3Pass-3D
Production 4Pass-3D
Quality 1Pass-1D
Quality 1Pass-3D

Quality 2Pass-1D
Quality 2Pass-3D
Quality 3Pass-1D
Quality 3Pass-3D
Quality 4Pass-1D
Quality 4Pass-3D

Papyrus Grande Pro

Quality_1Pass-3D
Quality_2Pass-3D
Quality_3Pass-3D
Quality_4Pass-3D
Quality_6Pass-3D

Info

3D stands for 3 drops. Variable drop is used for all resolutions.

Loading

Roll 3.3m
Custom (...)

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 1 level of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

CMYK
CMYKcm

Quality

Standard

Action

Available actions are:

Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
