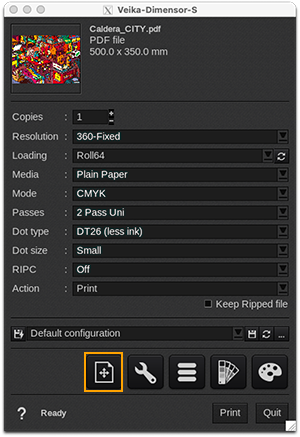

These devices can use different spot inks for embellishing. To configure these spot inks, you need to go to the Page Setup module, open the corresponding tab, and then click on Enable separation:
Info
To have more details on the topic, please refer to this article dedicated to Spot Inks.
Dimensor S
- The structural spot ink prints with an embossed effect, while the varnish with a gloss effect.
Dimensor SG
- The spot inks can print different layers that allow special effects on the media:
- Glue (glitter)
- Non-glue (mapped by the printer as yellow)
- Background (mapped by the printer as black)
- Your files to be printed should contain different pages (one page per effect/spot ink to be applied). This can be done in prepress with Caldera's PrimeCenter.

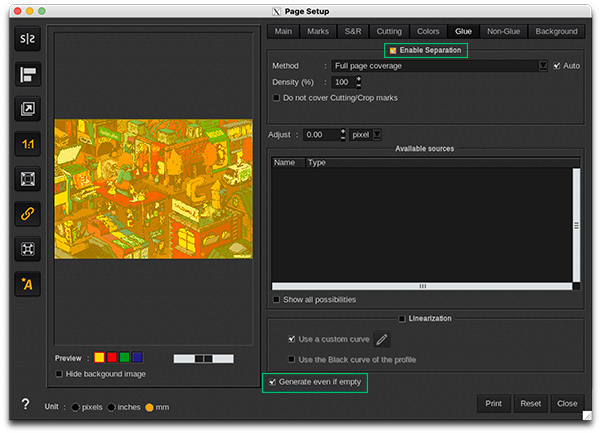

- Once your file is ready, you must enable the spot inks needed and also check the Generate even if empty setting (at the end of the tab):
