Supported models

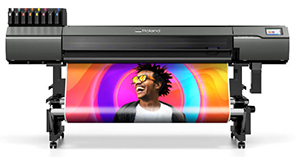

- Large format printers with an integrated cutter for Print-and-Cut. More info.
- These printers are available in 4 to 8-ink configurations, as well as in different sizes:
- LG-640 (64 in)
- LG-540 (54 in)
- LG-300 (30 in)
- Visit the official website of Roland
Drivers
Warning
Custom ink setups are chosen when installing the printer itself and cannot be changed afterward. Taking CMYKORGLW and ORGLWCMYK as an example: The installation setup allows, at the same time and in the same printout, either Colors > White and Colors > Varnish with the first driver or White > Colors with the second driver.
Carefully check the driver name and use the correct one for your ink setup, as the layered modes will not work if a driver for another order of ink is used.
|
|
Driver history
-
CalderaRIP V17.3
- Roland SP (VisualCut driver for these devices): Optimization of the cutting order when using "Instant Cutting", as well as the integration of tools configuration (using a VisualCut export).
- Two new drivers, ORGLWCMYK and ORWWCMYK, were developed for users whose printers have the ink setup outlined in the driver nomenclature.
-
CalderaRIP V17.2
- Two new drivers, ORPRWCMYK and RPRGLWCMYK, were developed for users whose printers have the ink setup outlined in the driver nomenclature.
-
CalderaRIP V16.2
- The Roland TrueVIS LG Series is supported since this version
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
These printers can have different ink setups:
|
|
Information about inks
- Caldera and Roland have different ways of abbreviating the colors, here is the nomenclature:
- "O" and "Or" = Orange
- "R" and "Re" = Red
- "W" and "Wh" = White
- "GL" and "Gloss" = Varnish
- "PR" = Primer
- When printing multilayer, please note that the reciprocal layering order for a given printer must be achieved with 2 jobs and media rewinding.
- Some setups allow the use of White, Varnish, and/or Primer as Spot Inks. Learn more with this dedicated article.
Connection
| USB | |
| File | |
| Network | |
| Serial |
Tips and Tricks
Immediate Cut is available in the Cutting tab of the Page Setup when selecting the Roland SP cutting driver.
