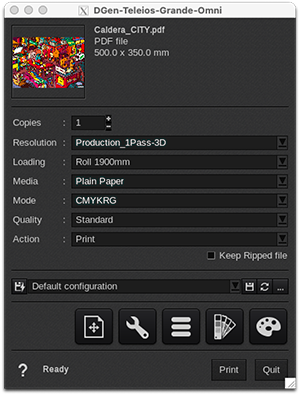

Dgen Teleios Omni (Grande and Pro) - Print module interface

Updated May 22, 2023 12:33

Resolutions

Info

"3D" means that resolutions are variable drop (3 dots).

Teleios Grande Omni		Teleios Omni Pro
Production_1Pass-3D (400x300) Production_2Pass-3D (400x600) Production_3Pass-3D (400x900) Production_4Pass-3D (400x1200) Production_6Pass-3D (400x1800) Production_8Pass-3D (400x2400)	Quality_1Pass-3D (600x300) Quality_2Pass-3D (600x600) Quality_3Pass-3D (600x900) Quality_4Pass-3D (600x1200) Quality_6Pass-3D (600x1800) Quality_8Pass-3D (600x2400)	Quality_1Pass-3D (600x300) Quality_2Pass-3D (600x600) Quality_3Pass-3D (600x900) Quality_4Pass-3D (600x1200) Quality_6Pass-3D (600x1800) Quality_8Pass-3D (600x1800)

Loading

Roll 1.9m / 1900mm
Custom (...)

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 1 level of selection:

CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Modes

Teleios Omni Pro:
- CMYKOR, CMYK, CMYKcm or CMYK + 2 custom colors
Teleios Grande Omni:
- CMYKRG, CMYK, CMYKcm or CMYK + 2 custom colors

Actions

Available actions are:

Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.

Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
