Supported model

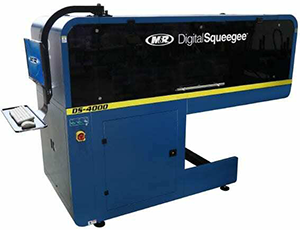

M&R Digital Squeegee (DS-4000)
|
Driver
- MR-DigitalSqueegee
Driver history
-
CalderaRIP V16.2
- Revision A: Changes were made to the default resolutions
-
CalderaRIP V13.0
- M&R Digital Squeegee is supported since this version
Resolutions
Info
"W" stands for White. Please select these resolutions if you want to print White ink.
- 600x1200 4pass
- 600x1200 4passW
- 600x1800 6pass
- 600x1800 6passW
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| Cyan | |
| Magenta | |
| Yellow | |
| Black | |
|
|
Spot Ink

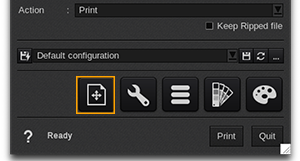

This device can use white as a spot ink. To configure it, you need to select to corresponding resolution and then go to the Page Setup module:
Once there, open the corresponding tab, click on Enable separation, and choose the separation Method that you may require. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |
