Supported models
SureColor F6400(H)
- 44-inch dye sublimation printer
- 4-color (F6400), or 6-color (F6400H) configuration
- Visit the website of Epson
Models concerned (with variations by region)
| Region | Machine |
| America | F6470(H) |
| Australia, New Zealand | F6460(H) |
| Europe | F6400(H) |
| Japan | F6450(H) |
| Korea | F6440(H) |
| South Asia, India, and Taiwan | F6430(H) |
Info
Epson's naming system:
- F: Fabric
- 6400: model number
- H: Machine with additional inks
Drivers
- Epson-SureColor-F6400 (for printers with CMYK ink configuration)
- Epson-SureColor-F6400H (for printers with 6-color ink configuration)
Info
With the F6400H machine/driver, the user chooses the ink configuration on the first installation and it remains fixed after that. Options are:
- CMYKLcLm
- CMYKOrVi
- CMYKFpFy
Driver history
-
CalderaRIP V17.1

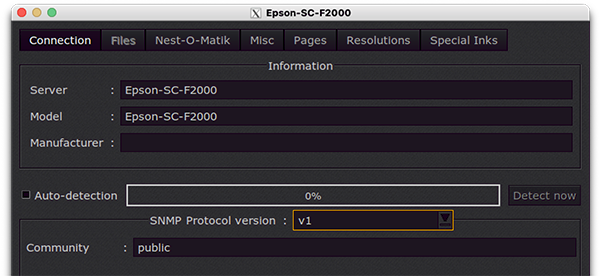

- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
-
CalderaRIP V17.0
- Revision A (both drivers): Added settings for "Save Paper" and "Auto Cut" at the end of the page/print
-
CalderaRIP V16.3
- Revision A (F6400H): Correction of a mismatch in the print data, which caused fluorescent inks not to appear when creating a profile and/or printing a linearization target using the related modes.
- Fix mode selection for "EPSON Precision Dot CMYK"
- Fix for ink output of Fluo Inks in "EPSON Precision Dot CMYK Fp Fy"
- Revision A (F6400H): Correction of a mismatch in the print data, which caused fluorescent inks not to appear when creating a profile and/or printing a linearization target using the related modes.
-
CalderaRIP V16.2
- Epson SureColor F6400(H) is supported since this version
Inks
F6400H Driver:
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| F6400 | F6400H | |
|---|---|---|
| Cyan | ✔ | ✔ |
| Magenta | ✔ | ✔ |
| Yellow | ✔ | ✔ |
| Black | ✔ | ✔ |
| Light Cyan | ✔ | |
| Light Magenta | ✔ | |
| Orange | ✔ | |
| Violet | ✔ | |
| Fluorescent Pink | ✔ | |
| Fluorescent Yellow | ✔ |
Connection
| USB | |
| File | |
| Network | |
| Serial |
Possible error messages
"Mode is not compatible with connected printer model"
This error refers to an inkset incompatibility and appears when the user tries to print with a mode that is incompatible with the inks installed. Examples:
- It is not possible to use CMYKcm on a machine with CMYKFpFy.
- A CMYK output from an F6400 model is not compatible with an F6400H FpFy machine, as the first one is the only other model/ink configuration capable of CMYK printing.
"This media configuration is not compatible with this printmode"
This error refers to the transfer destination and media thickness and is displayed when quality is not available with this type of media and future transfer material.
"Step&Repeat document to repeat is too large"
This one indicates that the printout as configured in the Print module interface is too large to use Step&Repeat hardware.
