Printer tab

• Repeat count X-axis: Similar to Step'n'Repeat material, on the horizontal axis (left-right)
• Repeat count Y-axis: Similar to Step'n'Repeat material, on the vertical axis (up-down)
• Save Paper: Reduce blank space at the end of page/print
• Auto Cut: Automatically cut at the end of print
• Use status for job management: Uses information returned by the printer for media size, and print end detection
• EpsonHTM threads: Specifies the number of parallel processes that calculate EPSON rasterization. Note that a trial-and-error approach is required to find the ideal value.

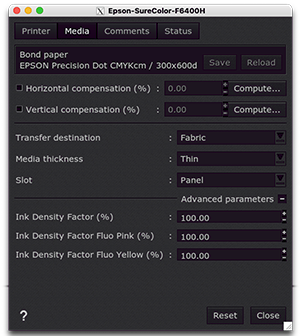

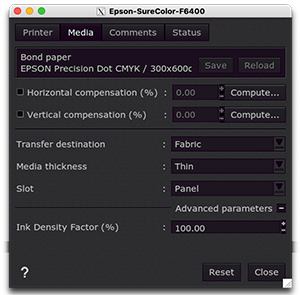

Media tab

F6400	F6400H

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Transfer destination. As these are dye sublimation printers, you can select from:
  • Fabric
  • Rigid

• Media thickness. Thickness selection of transfer paper. Options are:
  • Thin
  • Medium-Tick / Thick

• Slot. Choice of printer configuration slot for this media:
  • Panel
  • 1 to 10

Advanced parameters

• Ink Density Factor (%): Setting for EPSON Precision Dot modes, which gives EPSON screening the ink usage factor (for all inks except Fluo ones).
  For some media, this value must be increased to obtain optimum results, while for others it must be reduced.

Only on F6400H driver:

• Ink Density Factor Fluo Pink / Yellow: Fluorescent Pink ink setting for EPSON screening (see above)

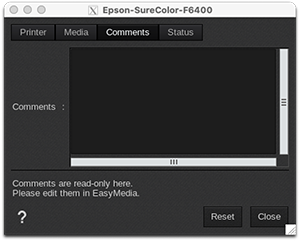

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

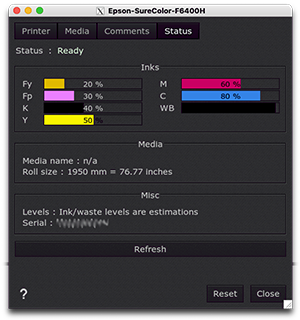

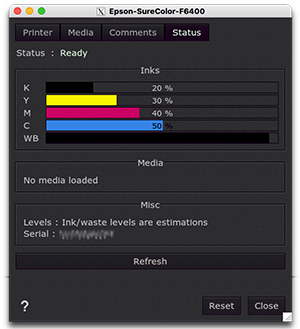

Status tab

F6400	F6400H

• Status: global state of the printer:
  • Ready
  • Not available
  • Printing

All data is coming from the printer, if it is not available, nothing can be displayed.

• Inks: information about the ink configuration and the inks levels in %.

• Media: information about the media loaded on the printer.

• Misc: complementary info about the printer (model, serial number, firmware version).

• Refresh: button to refresh the tab.
