Supported models
|
Visit the official website of Aristo cutting systems
Drivers
- Aristo
- Aristo XML
Driver history
-
CalderaRIP V17.3:
- A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for almost all cutting drivers. Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.
-
CalderaRIP V16.3:
- Aristo XML: New driver supported since this version and based on the CalderaXML format
- Aristo driver: An option to enable Bezier curves was added
-
CalderaRIP V7.11:
- Aristo cutters supported since this version
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut B) |
You might be interested in reading:
Format
- Aristo driver uses HPGL language and supports .plt files
- Aristo XML supports .xml files
Features
Info

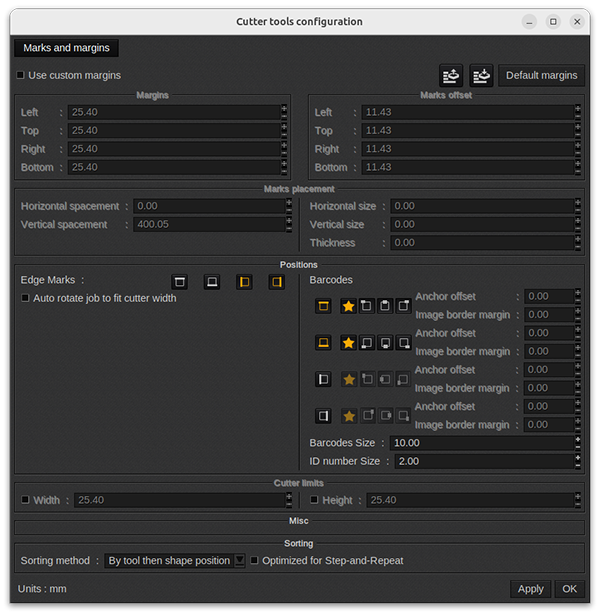

Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.
Specific features (only on the Aristo driver)
Generate segments rather than Bezier curves: Legacy option for controllers that don't support Bezier curves.
Associations
- No materials and methods association
- No materials and media association
- No methods and contours association
