Generic Cut file driver

Updated June 26, 2024 09:58

Driver

Driver history

CalderaRIP V7.3
- A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for almost all cutting drivers (both GrandCut and VisualCut). Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.
CalderaRIP V16.3
- i-Script drivers (I-Script, Generic Cut File, Kongsberg JDF):
  - Change of top and bottom margins in all I-Script drivers, to avoid blank space if not needed
  - Also, the drivers can now also register marks in the Y direction (horizontal)
  - Finally, a new field "Output naming" has been added so that you can choose between ID_name, name_ID, or only ID
CalderaRIP V7.10
- Generic cut file driver supported since this version

Type of license

	CutServer
	GrandCut B

This driver is for flatbed / GrandCut cutters, so you might want to read:

This driver supports .cut files

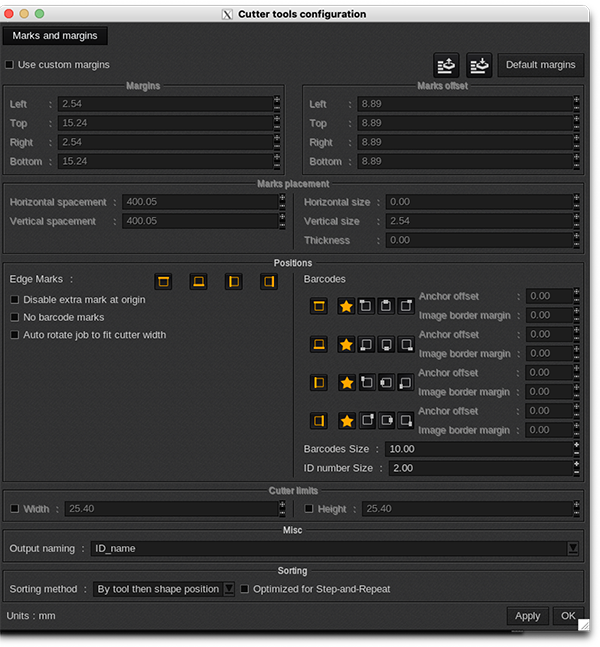

Cut file - cutter tool config.png

Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.

Specific features

Registration marks: The driver can also generate marks in the Y direction (horizontal)
No barcode marks: Remove the legacy I-Cut marks near the barcode
Output naming: You can choose between ID_name, name_ID, or only ID
