Supported models
- Hybrid Flatbed/Roll-fed Printers

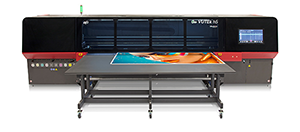

- EFI VUTEk h3 / h5 (3.2 m)
- EFI VUTEk XT (1.5 m)
- Option to 4 or 8-color ink sets + white
- Visit the official website of EFI
Drivers
- (EFI) Vutek-h5
- (EFI) Vutek-h3
Good to know
If you have the EFI VUTEk XT printer, you may use the Vutek-h5 driver, by changing its resolutions to 600x600 and 600x1200.
Driver history
-
CalderaRIP V16.0:
- The EFI VUTEk XT is supported since this version (by using the Vutek-h5 driver).
-
CalderaRIP V12.0:
- The EFI VUTEk h3 / h5 printers are supported since this version.
Resolutions
- 600x600-greyscale
- 600x1200-greyscale
- 900x1200-binary
Inks
| Cyan |
|
| Magenta |
|
| Yellow |
|
| Black |
|
| Light Cyan |
|
| Light Magenta |
|
| Light Yellow |
|
| Light Black |
|
Spot Ink

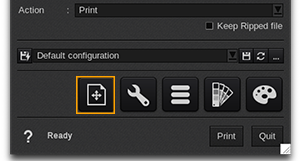

These devices can use White as a spot ink. To configure them, you need to select the corresponding resolution and then go to the Page Setup module:
Once there, you can open the corresponding tab, click Enable separation, and choose the method you may need. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |
