Supported models
Info
These printer models were formerly branded as Océ Arizona.

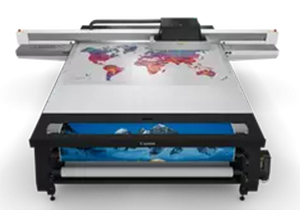

Canon Arizona 1340 / 1360 / 1380 GTF & XTF
Learn more about these models on the manufacturer's website: |
Drivers
Info - Starting from V16.2
Depending on the controller version of your printer (RX.X), you can use either the drivers listed below or the same ones but with the -R2 ending in their name.
- Canon-Arizona-1340
- Canon-Arizona-1360-CMYKWV
- Canon-Arizona-1360-CMYKWW
- Canon-Arizona-1380-CMYKcmWV
- Canon-Arizona-1380-CMYKcmWW
Driver history
-
CalderaRIP V17.1
- Arizona-1380-CMYKcmWV-R2;
- Revision A: Correction of a mismatch in the resolution data, which caused the Fine Art resolution to fail in the Spooler.
- Arizona-1380-CMYKcmWV-R2;
-
CalderaRIP V17
- Canon-Arizona-1360-CMYKWV-R2;
- Canon-Arizona-1360-CMYKWW-R2;
- Canon-Arizona-1380-CMYKcmWV-R2;
- Canon-Arizona-1380-CMYKcmWW-R2:
- Revision B: Fix for missing layer selection in the Page Setup / White tab.
- All -R2 drivers:
- Revision A: Now the use of new resolutions is enabled. Previously, the resolution names did not match any print mode IDs in the driver, resulting in an "Invalid resolution. Please contact your support" error.
-
CalderaRIP V16.2
- Following an update of the manufacturer's SDK, the -R2 drivers were developed for printers with these controllers. These new versions of the original drivers include new resolutions.
-
CalderaRIP V12.0
- All drivers supported since this version
Resolution
After V16.2 / R2 printers
| Arizona 1340 | Arizona 1360 | Arizona 1380 | |
| Express | ✔ | ✔ | ✔ |
| Fine Art | ✔ | ✔ | ✔ |
| High Definition | ✔ | ✔ | ✔ |
| High Key | ✔ | ✔ | ✔ |
| Production-Classic | ✔ | ✔ | ✔ |
| Production-Fast | ✔ | ||
| Production-Plus | ✔ | ||
| Production-Plus-Fast | ✔ | ||
| Quality-Classic | ✔ | ✔ | ✔ |
| Quality-Classic-Density | ✔ | ✔ | ✔ |
| Quality-Classic-Layered | ✔ | ✔ | |
| Quality-Classic-Matte | ✔ | ✔ | ✔ |
| Quality-Classic-Smooth | ✔ | ✔ | ✔ |
| Quality-Plus | ✔ | ||
| Quality-Plus-Density | ✔ | ||
| Quality-Plus-Layered | ✔ | ||
| Quality-Plus-Matte | ✔ | ||
| Quality-Plus-Smooth | ✔ |
Before V16.2 / Printers with previous SDK
| Arizona 1340 | Arizona 1360 | Arizona 1380 | |
|---|---|---|---|
| Express | ✔ | ✔ | ✔ |
| Production | ✔ | ✔ | ✔ |
| Production-Fast | ✔ | ||
| Production-Plus | ✔ | ||
| Quality | ✔ | ✔ | ✔ |
| Quality-Matte | ✔ | ✔ | ✔ |
| Quality-Density | ✔ | ✔ | ✔ |
| Quality-Layered | ✔ | ✔ | |
| Quality-Smooth | ✔ | ✔ | ✔ |
| Quality-Plus | ✔ | ||
| FineArt | ✔ | ✔ | ✔ |
| High Definition | ✔ | ✔ | ✔ |
| High Key | ✔ | ✔ | ✔ |
Inks
| Arizona 1340 | Arizona 1360 | Arizona 1380 | |
|---|---|---|---|
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ||
| |
✔ | ||
| |
✔ | ✔ | |
| |
✔ | ✔ |
Spot Ink

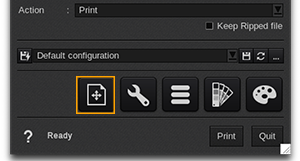

Some of these devices can use white and/or varnish as spot inks. To configure them, you need to select to corresponding resolution and then go to the Page Setup module:
Once there, open the corresponding tab, click on Enable separation, and choose the separation Method that you may require. Click here to learn more.
Warning
CostProof/CostView supported with limitations.
