Supported models
- This driver can be used for flatbed cutters compatible with .dxf files
- Dimensions: 3032mm and 2516mm
Driver

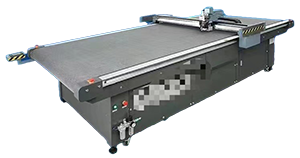

- Innohue Flatbed
Driver history
-
CalderaRIP V17.3
- A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for almost all cutting drivers. Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.
-
CalderaRIP V16.3
- Driver supported since this version
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A) |
You might be interested in reading:
Format
Supports .dxf and .dxf R14 (bezier curves)
Marks type
- Cross
Features
Info
Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.
Specific features
Bottom-right origin: Origin will be placed at the bottom-right position instead of the bottom-left default position to suit your table's orientation
CCW auto rotation: Auto-rotation will go in a counter-clockwise direction, rather than clockwise
DXF R14 (Bezier support): Use a newer version of DXF language which supports Bezier curves and leads to a smoother result
Associations
- No materials and methods association
- No materials and media association
- No methods and contours association
Cut contour names from your print file are directly included in the exported .DXF cut file
Recommendations
If your production requires it, you may use third-party software to check measurements. Caldera recommends you use the open-source LibreCad.
