Supported models

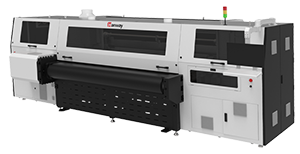

Hanway’s series of large-format printers for corrugated packaging.
|
Scanning printers
|
Drivers
Info
The driver ending in W is available from WorkSpace or CalderaDock under the manufacturer “Hanway 深圳汉华工业数码设备有限公司" and the one ending in UV under "Hanway".
- Hanway-Revo-2500W
- Hanway-Revo-2500UV
Driver history
-
CalderaRIP V18.1:
- Revision A:
- Light cyan and light magenta inks are now available in the driver, with the addition of CMYKcm, CMYKcmO, and CMYKcmOG modes.
- The number of channels has been increased from 8 to 9 to accommodate the light inks.
- For the Revo-2500W, a new "Middle+Large" quality setting has been introduced, allowing you to print using only medium and large dots.
- Revision A:
-
CalderaRIP V16.3:
- The "Revo-2500UV" has been supported since this version.
-
CalderaRIP V15.0:
- The "Revo-2500W" has been supported since this version.
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
Warning
If your production requires other ink sets than the ones described, you may need a model upgrade and/or the corresponding supplies. Contact Hanway directly for more information.
| Cyan | Light Cyan | Green |
| Magenta | Light Magenta | |
| Yellow | Red | |
| Black | Orange |
| Cyan | Red | |
| Magenta | Orange | |
| Yellow | Green | |
| Black |
Spot Ink

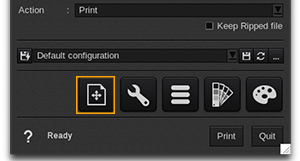

The Revo 2500UV can also use white as a spot ink. To configure it, you need to go to the Page Setup module:
Once there, open the White tab, click Enable Separation, and choose the Method that you may require. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |
