Supported models

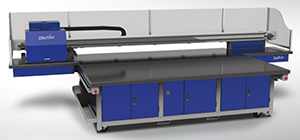

DigiTech Trufire ST, and LT (X2)
- UV Flatbed printers
- Table size: 4x8 (ST model) and 5x10 (LT / X2 models).
- Can use white and clear (varnish) ink (optional)
Driver
- DigitechUSA-Digitech-TruFire
Driver history
-
CalderaRIP V18.1:
- Revision A: New support for color mode СМYKОk according to the new firmware version for these printers.
-
CalderaRIP V17:
- Additions of the resolutions 300x1200, 600x1200, 900x1200, and 1200x1200, in both Binary and Grayscale.
- Added support for additional inks: Varnish, Orange, Red, Green, and Blue.
-
CalderaRIP V13.10:
- The printers are supported since this version
Resolutions
Good to know
The following resolutions and modes are present in recent versions of the driver. If you are missing any of them, don't hesitate to update your software and driver versions.
|
|
|
Modes
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
|
|
|
Spot Ink

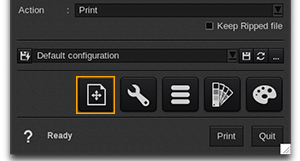

These devices can use white and varnish as spot inks. To configure them, you need to select the corresponding resolution and then go to the Page Setup module:
Once there, open the corresponding tab, click on "Enable separation", and choose the separation Method that you require. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |
