Colex cutters - Overview

Updated

Supported models

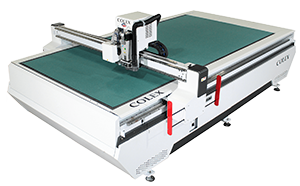

Colex Sharpcut digital cutting systems



Colex shapcut cutters.png
  • SX Series:
    • flatbed static model (photo)
    • 8 models, working area of up to 126” x 126”
  • SXC Series:
    • flatbed cutter conveyor and auto feeder
    • 4 models, working area of up to 126” x 126”
  • PX Series:
    • flatbed packaging model
    • 2 models, working area of up to 67” x 126”



Drivers

  • Sharpcut Pro
  • Colex



Driver history

  • CalderaRIP V16.0.1
    • New Sharpcut Pro driver for cutters equipped with the Colex Cut Center controller from version 8.
  • CalderaRIP V16.0.0
    • It is no longer needed to scale the marks/contours down by 40% on the cut controller. Also, the output cut file has been set to .OXF
  • CalderaRIP V10.2.0
    • Cutters supported since this version



Installation

  Info

In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.

Circle.png Roll-to-Roll (Legacy CutServer)
Check_circle.png Flatbed (Legacy GrandCut B)

You might be interested in reading:



Format

  • Supports .OXF files (as of CalderaRIP V16.0)
  • Supports .PLT files (previous versions)



Features

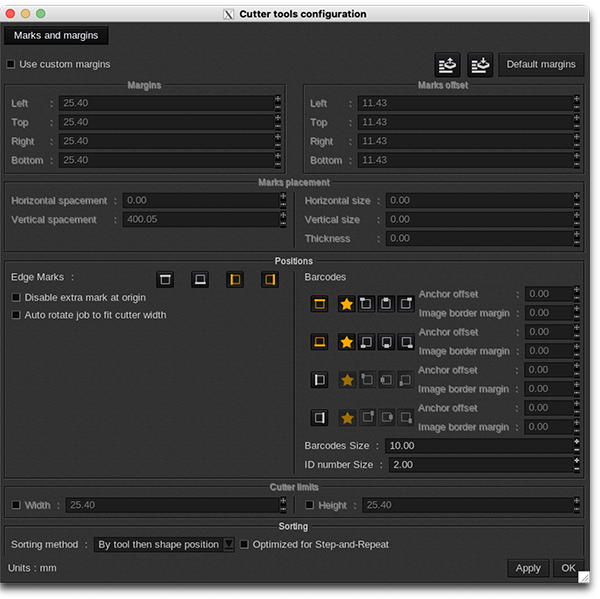

Sharpcut Pro Driver Colex Driver

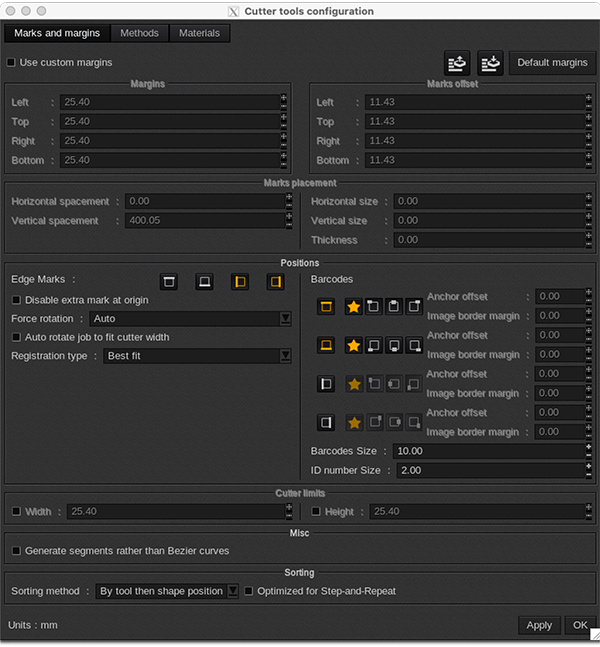

Colex shapcut cutters - Cutter tools configuration.png

  Info

Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.



Specific Features

  • Registration type. Choose where marks are placed on your job depending on the cutting you want.
    • Best fit. Geometric cutting objects are modified and/or distorted to best fit each area of the print:
      • All marks: By considering all marks.
      • SmartComp: Smart compensation by using marks per area, adapted for local distortion.
    • Fit to job. Geometric cutting objects are not modified. The entire job is positioned for the best possible position for the sheet:
      • All marks: By considering all marks.
      • SmartComp: Smart compensation by using marks per area, adapted for local distortion.



Associations

  • No materials and methods association
  • No materials and media association
  • No methods and contours association
