Supported model

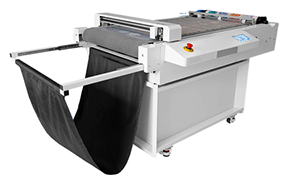

- Flatbed plotter from Secabo (powered by Saga)
- Maximum cutting size: 640mm x 880mm
- Sensor: CCD Camera / Scanning code type: mark or QR code
- Cutting media types: Vinyl, self-adhesive sticker, cardboard
Driver
- Saga
Driver History
-
CalderaRIP V17.3
- Cutter supported since this version.
Connection
| USB | |
| File | |
| Network | |
| Serial |
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A) |
You might be interested in reading:
Format
Supports HPGL language with extensions.
Marks
- 4 round marks in the corners only.
-
QR code without orientation at the top-left corner (or bottom-right if the job must be upside-down).
Warning
Fixed position can't be altered.
Features
Info

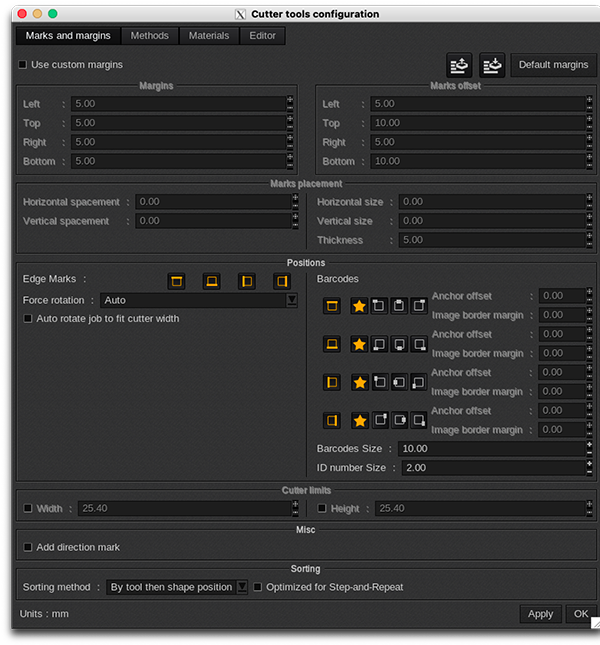

Please refer to this article for information about the standard features available in the Cutter Tools Configuration window.
Materials and Methods Association
This driver includes an Editor tab. Learn more about it with the following dedicated articles:
- How to automatically associate materials/methods with the GrandCut Editor?
- How to manually associate materials and methods between CalderaRIP and the controller? (If you have problems using the Editor tab, this article covers the overall manual process, regardless of driver)
