Supported model
- Flatbed plotter from Secabo (powered by Saga)
- Maximum cutting size: 640mm x 880mm
- Sensor: CCD Camera / Scanning code type: mark or QR code
- Cutting media types: Vinyl, self-adhesive sticker, cardboard
Driver
- Secabo
Driver history
-
CalderaRIP V17.3
- Cutter supported since this version.
Connection
| USB | |
| File | |
| Network | |
| Serial |
Installation
Type of license
| CutServer | |
| GrandCut A |
This driver is for flatbed / GrandCut cutters, so you might want to read:
Format
Supports HPGL language with extensions.
Marks
- 4 round marks in the corners only.
- QR code without orientation at the top-left corner (or bottom-right if the job must be upside-down).
Warning
Fixed position can't be altered.
Features
Info

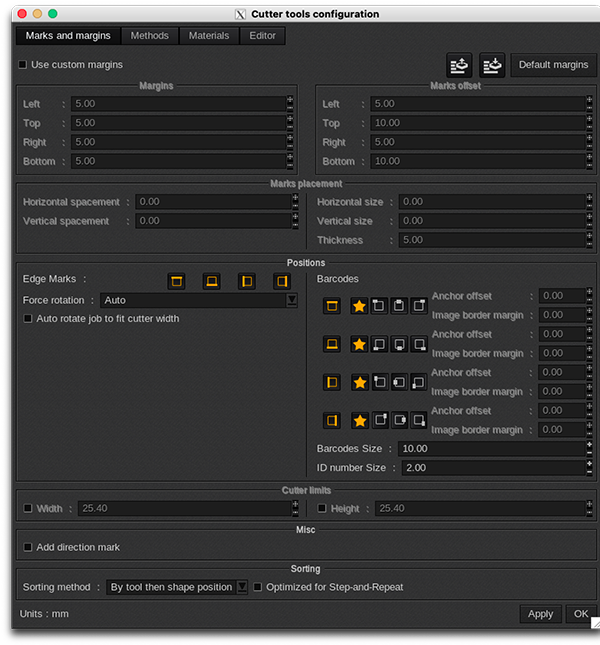

Please refer to this article for information about the standard features available in the Cutter Tools Configuration window.
Materials / Methods association
This driver includes an Editor tab. Learn more about it with the following dedicated articles:
- How to automatically associate materials/methods with the GrandCut Editor?
- How to manually associate materials and methods between CalderaRIP and the controller? (If you have problems using the Editor tab, this article covers the overall manual process, regardless of driver)
