Supported models

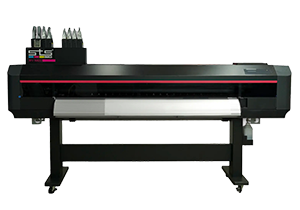

Mutoh XpertJet 1682D / STS XPJ 1682D
- Direct-to-Film printer developed in partnership between Mutoh and STS Inks.
- Max printable width: 64"
- STS DTF Inks (CMYYKK WWWW)
Driver
- Mutoh-XpertJet-1682D
Driver history
-
CalderaRIP V17.3
- Revision A: Fixed an error in the driver data files that did not allow the user to see the White tab (Spot Ink) in Page Setup.
- Supported since this version.
Resolutions
Info
This driver has several resolutions and passes options to choose from. For each available resolution, you can opt for a variable or a fixed drop (-Fix).
|
|
|
|
Loading
|
|
Modes
- CMYK
- CMYKcm
- CMYK + 2xWhite
- CMYKcm + 2xWhite
- CMYKcm + 4xWhite
- White only
Quality
Instead of "Quality", the driver allows the user to customize the following settings:
- Effect: None (1-3), or Fine & Fog (1-3).
- Scan multiplier: Auto, x1, x2, or x4.
- Direction: Unidirectional or Bidirectional.
- Dot family: Auto, VSD1 (Large), VSD3 (Medium), or VSD4 (Small).
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| Cyan | |
| Magenta | |
| Yellow | |
| Black | |
| Light Cyan | |
| Light Magenta |
Info
This device can also use White as a Spot Ink. Learn more with this dedicated article.
Printer Settings
The driver for this printer has similar settings to those of another Mutoh device. You can consult more details about these settings in the dedicated article.
Connection
| USB | |
| File | |
| Network | |
| Serial |
