Supported model

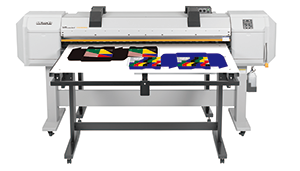

Mutoh ValueJet 1628MH
- Hybrid printer equipped with MUTOH multi-purpose ink "MP31"
- 1625 mm/64” wide
- Visit the official website of Mutoh
Driver
- Mutoh-ValueJet-1628MH-CMYKcmkW
Driver history
-
CalderaRIP V18:
- The CMYKOGB print mode can now be used with a license without NColor.
-
CalderaRIP V17.3
- Supported since this version
Resolutions
|
|
|
Quality
Instead of "Quality", the driver allows the user to customize the following settings:
-
Effect:
- None 1
- None 2
- Wave 1
- Wave 2
- Fuzz 1
- Fuzz 2
- Fine & Wave 1
- Fine & Wave 2
- Fine & Fuzz 1
- Fine & Fuzz 2
- Super Fine & Wave
- Super Fine & Wave
- Wow 1
- Wow 2
- Fine & Fuzz 3
- Fine & Fuzz 4
- Fog 1
- Fog 2
- Fine & Fog 1
- Fine & Fog 2
- None 3
- Wave 3
- Fuzz 3
- Fine & Wave 3
- Fine & Fuzz 5
- Fine & Fuzz 6
- Wow 3
- Fog 3
- Fine & Fog 3
- Scan multiplier: Auto, x1, x2, or x4.
- Direction: Unidirectional or Bidirectional.
Inks
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| Cyan | |
| Magenta | |
| Yellow | |
| Black | |
| Light Cyan | |
| Light Magenta | |
| Light Black | |
| Orange | |
| Green | |
| Blue |
Printing modes
- CMYK
- CMYKcm
- CMYKcmk
- CMYKOGB
Spot Ink

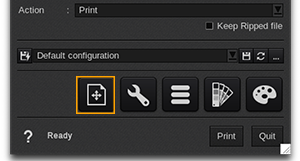

This printer can use White as a spot ink. To configure it, you must go to the Page Setup module:
Once there, you can open the White tab, click Enable separation, and choose the method you may need. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |
