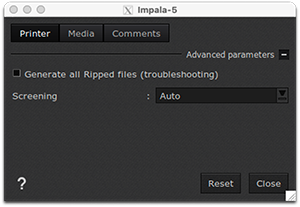

Printer tab
Advanced parameters
- Generate all ripped files (troubleshooting): enable this option to not delete folders generated in the output directory, which contain the .png preview files for each job.
-
Screening. Here you can choose between different screening methods:
- Auto: Selects automatically a value between 433 and 587 depending on the print heads.
- Matrix 587: This option forces the value 587.
- Matrix 433: This option forces the value 433.
Media tab
-
Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
- Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
- Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.
Material Name: This setting is used in the printer controller to set material-specific print parameters.

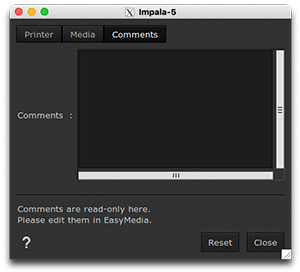

Comments tab
On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
