Supported model

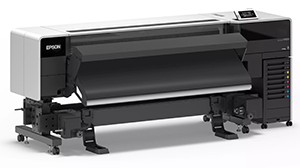

- Large format (64") dye sublimation textile printer
- Inksets:
- F9500: 4-color
- F9500H: Up to 10-color
- Successor to SC-F9200, SC-F9300, and SC-F9400(H)
Models concerned (with variations by region)
| Region | Machine |
| America | F9570(H) |
| Australia and New Zealand | F9560(H) |
| China | F9580(H) |
| Europe | F9500(H) |
| Japan | F9550(H) |
| Korea | F9540(H) |
| South Asia, India, and Taiwan | F9530(H) |
Drivers
- Epson-SureColor-F9500
- Epson-SureColor-F9500H
Driver history
-
CalderaRIP V18.1:
-
Revision A (both drivers): Internal adjustments to the ink output.
Info
This revision includes a slight deviation from the ICC profiles associated with previous driver versions. If your production requires it, please feel free to redo the color calibrations as needed.
-
-
CalderaRIP V18:
- Supported since this version
Inks and modes
F9500H Driver:
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| F9500 | F9500H | ||
|
LcLm | OrV | FpFy |
|
|
|
|
| Mode | Type | Screening Caldera |
|---|---|---|
| CMYK | CMYK | Yes |
| CMYK(cm) | CMYK | Yes |
| CMYK(O)(V) | CMYK | Yes |
| CMYK(Fp)(Fy) | CMYK | Yes |
| CFpFyK | CMYK | Yes |
| CMFyK | CMYK | Yes |
| EPSON Precision Dot CMYK | CMYK (Contone) | No |
| EPSON Precision Dot CMYKcm | CMYK (Contone) | No |
| EPSON Precision Dot CMYKOV | CMYK (Contone) | No |
| EPSON Precision Dot CFpFyK | CMYK (Contone) | No |
| EPSON Precision Dot CMFyK | CMYK (Contone) | No |
| EPSON Precision Dot CMYKFpFy | CMYK (Contone) | No |
You may be interested in reading: How to print with Epson printers equipped with fluorescent inks?
Connection
| USB | |
| File | |
| Network | |
| Serial |
SNMP Protocol

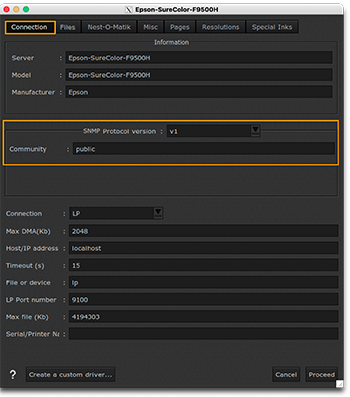

This printer driver supports SNMP version 1 and version 3. If necessary, you can manually change the SNMP protocol version to match your printer settings using the corresponding field in the Connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you cannot access it using SNMP V1.
Media synchronization
Also in ServerAdmin, the Serial/Printer name must be filled in with the printer's serial number to connect to the EPSON Edge Dashboard for media synchronization. This action is only possible in the EasyMedia module. See the dedicated article for more information:
Possible error messages
Mode incompatible with this printer inkset
The mode uses inks that are not available with the ink configuration installed on the printer (e.g., use of “CMYKcm” mode with a printer using “CMYKOV”).
Media has invalid left or right margin
Please change the margins in ServerAdmin > Configure button > Pages tab. The default value is 5 mm; however, acceptable values range from 3 mm to 25 mm.
Media has invalid top or bottom margin
Please change the margins in ServerAdmin > Configure button > Pages tab. The default value is 5mm.
This media material isn't available in this mode and configuration
Printmode (Resolution/Quality) with EPSON Precision Dot mode that is not compatible with the material in the Media tab. Please choose a Resolution/Quality configuration compatible with this type of media.
Quality not supported with this mode (please use an EPSON Precision Dot mode)
Quality not compatible with Caldera screening, please change to a compatible quality or use EPSON Precision Dot mode.
Printer inkset unknown, please make sure the printer can be contacted
Only for F9500H models. This message appears when the driver has been unable to contact or detect the ink configuration.
