Find in this article the settings specific to the M&R Quatro X and Y cutters.
Specifications
- Direct to Film (DTF) Transfer Film Cutters
-
X Model:
- Rotary wheel provides consistent cutting and sharpness
- Cut Width: 30 – 61 cm (12" – 24")
- Can be used independently from a Quatro printer as a standalone cutting solution
-
XY Model:
- Blade on belt system cuts printed and cured PET film on both the x-axis and y-axis
- Maximum cut size: 63 x 86 cm (25" x 34")
- A Quatro printer purchase is required to purchase this cutter model
- M&R website
History
-
M&R Quatro RIP V1.4:
- This version includes the support of both cutter models, configurable in the layout panel.
Cutter configuration
Cutter X

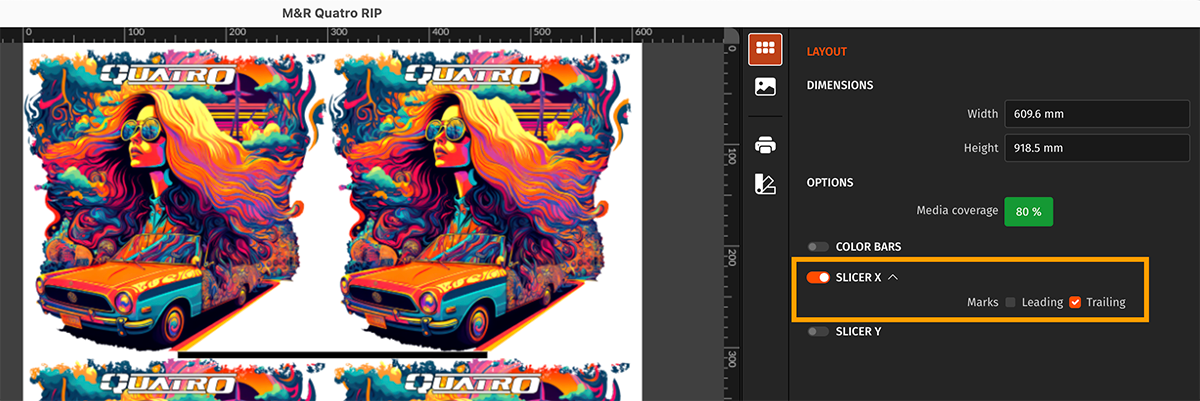

Users of this cutter must enable the "Slicer X" check box:
- The cutter will only cut horizontally across the full width of the film (24").
- You can choose between two types of marks:
- Leading: Adds a mark at the top of the layout.
- Trailing: Adds a mark at the top of the layout.
Cutter XY

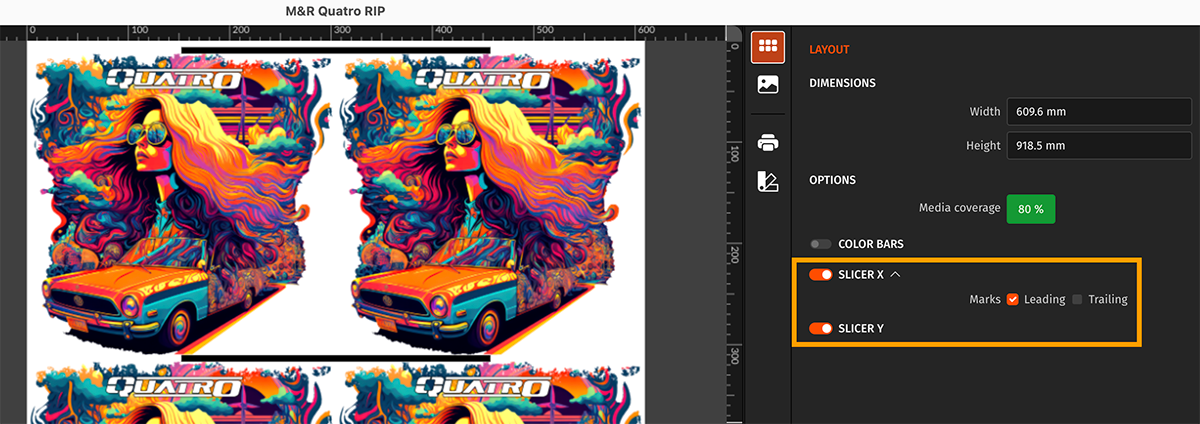

Users of this model of cutter can decide whether to use it only with the X blade or to use it to its full capabilities by activating both blades (X and Y).
By enabling "Slicer X":
- The first blade of the cutter will only cut horizontally across the full width of the film (24").
- You can choose between two types of marks:
- Leading: Adds a mark at the top of the layout.
- Trailing: Adds a mark at the top of the layout.
By enabling "Slicer Y":
- The second blade will cut vertically at the center mark based on the film width (e.g., 24", 18", etc.).
