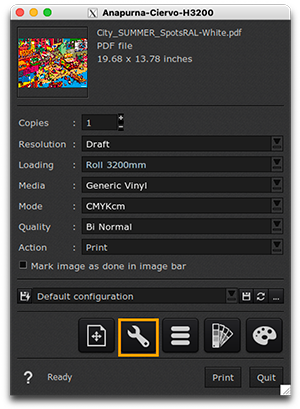

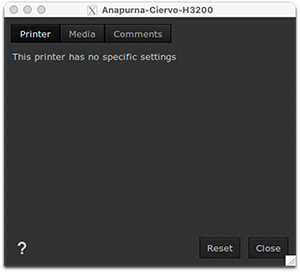

Printer tab

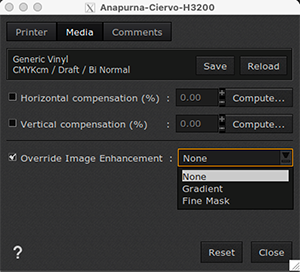

Media tab
-
Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
- Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.

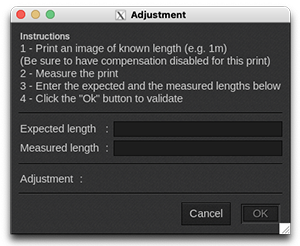

- Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.
-
Override Image Enhancement: This setting allows you to override the image enhancement method. Options are:
- None (disables override)
- Gradient (for smoother transitions)
- Fine Mask (for improved detail and clarity)
Info
By default, the "Standard" and "High Quality" resolutions use the Fine Mask enhancement, while all other resolutions are set to "None" (indicating no enhancement).

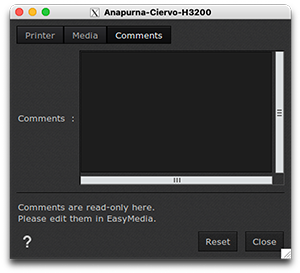

Comments tab
On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
