Roland VersaUV LEC2 - Overview

Updated

Supported Models

UV Printer/Cutters

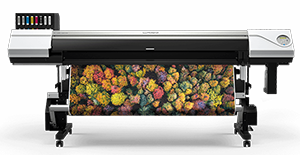

VersaUV LEC2-300 and VersaUV LEC2-330 VersaUV LEC2-640
LEC2_300-330_2_200px.png LEC2_640_300px.png


UV Printers

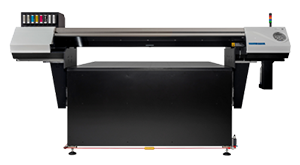

VersaUV LEC2-330S Flatbed and Belt VersaUV LEC2-640S Flatbed and Belt
LEC2_330S_200px.png LEC2_640S_300px.png



Drivers

  Warning

Using the correct driver based on the printer's ink configuration is crucial, as the printing modes differ. For example, do not use a 4-color driver to print in CMYK mode on a 7- or 8-color printer, as this may lead to incorrect results.
LEC2 drivers are not compatible with LEC printers, and vice versa.

  Info

Drivers for the VersaUV LEC2-330 are also compatible with the VersaUV LEC2-330S. The same applies to the VersaUV LEC2-640.

  • Roland-VersaUV-LEC2-300-CMYK
  • Roland-VersaUV-LEC2-330-CMYK
  • Roland-VersaUV-LEC2-330-CMYKGLW-UV5 (Gloss-White)
  • Roland-VersaUV-LEC2-330-CMYKPRGLW-UV5 (Primer, Gloss, White)
  • Roland-VersaUV-LEC2-330-ORCMYKGLW-UV5 (Orange, Red, Gloss, White)
  • Roland-VersaUV-LEC2-640-CMYK
  • Roland-VersaUV-LEC2-640-CMYKGLW-UV5 (Gloss-White)
  • Roland-VersaUV-LEC2-640-CMYKPRGLW-UV5 (Primer, Gloss, White)
  • Roland-VersaUV-LEC2-640-ORCMYKGLW-UV5 (Orange, Red, Gloss, White)



Driver History

  • CalderaRIP V17.3:
    • Roland SP (VisualCut driver for these devices):
      • Optimization of the cutting order when using "Instant Cutting", as well as the integration of tools configuration (using a VisualCut export).
    • Roland VersaUV-LEC2-330-CMYK; Roland VersaUV-LEC2-330-CMYKGLW; Roland VersaUV-LEC2-330-CMYKPRGLW; Roland VersaUV-LEC2-640-CMYK; Roland VersaUV-LEC2-640-CMYKGLW; and Roland VersaUV-LEC2-640-CMYKPRGLW:
      • Revision A: Fixed a missing parameter in jobs that caused “Instant cutting” to not work correctly.
  • CalderaRIP V15.0:
    • VersaUV LEC2-330/S supported
    • VersaUV LEC2-640/S supported
  • CalderaRIP V14.0:
    • VersaUV LEC2-300 supported for CMYK



Inks

VersaUV LEC2-330/640(S):

  Info

Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.

  VersaUV LEC2-300 VersaUV LEC2-330/640 VersaUV LEC2-330S/640S
1_Cyan.png   Cyan ✔ ✔ ✔
2_Magenta.png   Magenta ✔ ✔ ✔
3_Yellow.png   Yellow ✔ ✔ ✔
4_Black.png   Black ✔ ✔ ✔
Orange.png   Orange   ✔ ✔
Red.png   Red   ✔ ✔
Varnish.png   Gloss   ✔ ✔
Primer.png   Primer   ✔ ✔
White.png   White   ✔ ✔



Connection

USB
File
Network
Serial
