Supported model

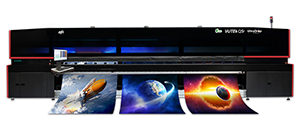

EFI VUTEk Q3r and Q5r (photo)
- Superwide Roll-to-Roll Printers
- Max. printing width: 3.5m (Q3r) and 5.2m (Q5r)
- Visit the official website of EFI
Driver
- EFI-Vutek-Qr
Driver history
-
CalderaRIP V16.3
- Revision B: Fixes the link between resolutions and "split curves"
- Revision A: New resolutions were added
-
CalderaRIP V15
- Revision A: New resolutions were added
-
CalderaRIP V14.1
- Revision A: New resolutions were added
- Driver supported since this version
Resolutions
Info
Please refer to the file attached at the end of this article to check all the resolutions and print modes available.
Inks
| Cyan |
|
| Magenta |
|
| Yellow |
|
| Black |
|
| Light Cyan |
|
| Light Magenta |
|
| Light Yellow |
|
| Light Black |
|
Spot Ink

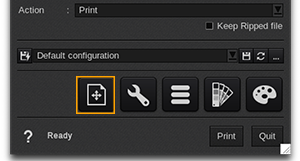

These devices can use White and Coat as spot inks. To configure them, you need to select the corresponding resolution and then go to the Page Setup module:
Once there, open the corresponding tab, click on Enable separation, and choose the separation Method that you may require. Click here to learn more.
Connection
| USB | |
| File | |
| Network | |
| Serial |

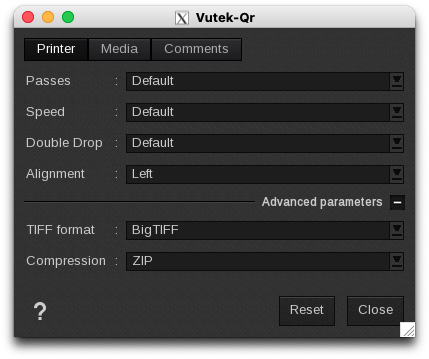

Printer Settings
- Passes: Default, 4, 6, 8, 16, 32 passes
- Speed: Default, Slow, Normal, Quick, Fast
- Double Drop: Default, Yes/No
- Alignment: Default, Left/Center/Right
-
Advanced parameters:
- Tiff Format: BigTIFF/Standard
- Compression: ZIP, LZW, Packbits, None, ZIP1, ZIP3, ZIP5, ZIP7, ZIP9
