Supported model
Large format (64") eco-solvent printer
For sign or poster printing
6-color inkset
Models concerned (with variations by region)
| Region | Machine |
| America | S8170 |
| Australia, New Zealand | S9160 |
| China / Hong Kong | S9180 |
| Europe | S8100 |
| Japan | S8150 |
| Korea | S8140 |
| South Asia, India, and Taiwan | S9130 |
Driver
- Epson-SureColor-S8100
Driver History
-
CalderaRIP V18.2:
-
Supported since this version.
Warning
The initial version of the driver contains a known incompatibility with the printer, which prevents USB functionality on Linux. We are actively working with Epson to resolve this.
-
Inks and Modes
| Cyan | |
| Magenta | |
| Yellow | |
| Black | |
| Light Cyan | |
| Light Magenta |
| Mode | Type | Screening Caldera |
|---|---|---|
| EPSON Precision Dot CMYK | CMYKcm (Contone) | No |
Connection
| USB | |
| File | |
| Network | |
| Serial |
Warning
Network connection and EPSON Precision Dot mode: For optimal performance, an IPv4 address is essential. While you can use a hostname (DNS) for dynamic name resolution—an example of this—you must ensure that it resolves to an IPv4 address.
SNMP Protocol

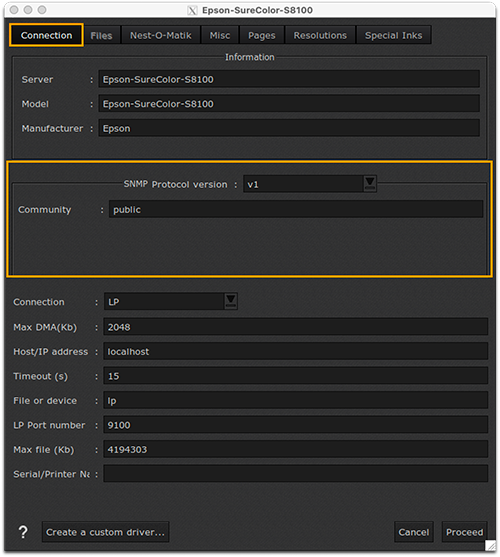

This printer driver supports SNMP version 1 and version 3. If necessary, you can manually change the SNMP protocol version to match your printer settings using the corresponding field in the Connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you cannot access it using SNMP V1.
Media synchronization
Also in ServerAdmin, the Serial/Printer name must be filled in with the printer's serial number to connect to the EPSON Edge Dashboard for media synchronization. This action is only possible in the EasyMedia module. See the dedicated article for more information:
Possible error messages
Media has invalid left or right margin
Please change the margins in the Pages tab of this driver's settings, accessible in the ServerAdmin module.
This media material isn't available in this mode and configuration
Printmode (resolution, quality) with EPSON Precision Dot mode that is not compatible with the Material in the Media tab. Please choose a Resolution and Quality configuration compatible with this type of media.
Mode using ink not available on this printer
Incorrect configuration for this mode and the ink setup.
