Supported models
-

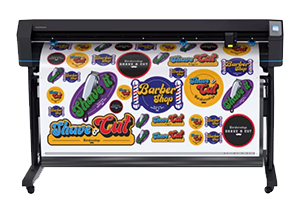

HP Latex Plus Cutting solutions:
- HP Latex 54 (Plus): Up to 53.1 in (1.35 m) wide
- HP Latex 64 (Plus): Up to 62.2 in (1.58 m) wide
-
HP Latex Print and Cut Plus solutions:
- HP Latex 630 (W): Up to 64 in (1.63 m) wide
- Earlier models (see your printer's technote for details)
- These devices feature the HP barcode system and OPOS marks.
Drivers
- HP Latex Plus OPOS Xtra
- HP Latex Plus
- HP Latex Cutter
Driver history
-
CalderaRIP V20:
- Fixed code-reading failures caused by insufficient spacing between Barcode 39 or QR codes and the cutter’s PostNet barcode or identification number.
-
CalderaRIP V14.10:
- Support for HP Latex 54 Plus, HP Latex 64 Plus, and HP Latex Print and Cut devices was introduced in this version.
-
CalderaRIP V11.10:
- Support for HP Latex 54 and HP Latex 64 was introduced in this version.
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A/B) |
For more information, see:
Marks
The following images show the default marks for each of the three drivers:

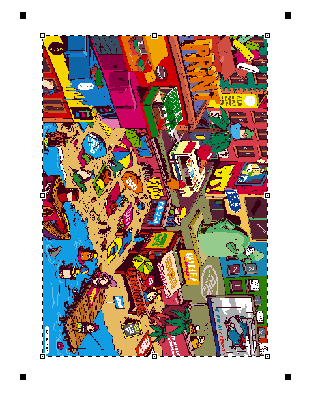

HP Latex Cutter |

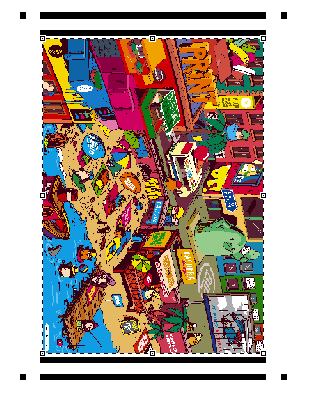

HP Latex Plus |

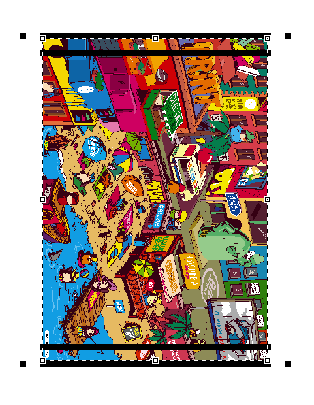

HP Latex Plus OPOS Xtra |
You can adjust the placement, spacing, and margins of these marks in the Tools > Marks and margins tab. You can also add marks in the Page Setup > Marks tab.
Info
If your device is equipped with an OPOS Xtra sensor, you may want to set up a more complex workflow using the OPOS Xtra cutter with the HP Latex Plus OPOS Xtra driver.
This workflow has some limitations: it is not recommended for images larger than 500 mm, does not work with Contour Nesting, and requires margin adjustments.
For more information, see: How to use a cutter/trimmer equipped with OPOS Xtra?
Features

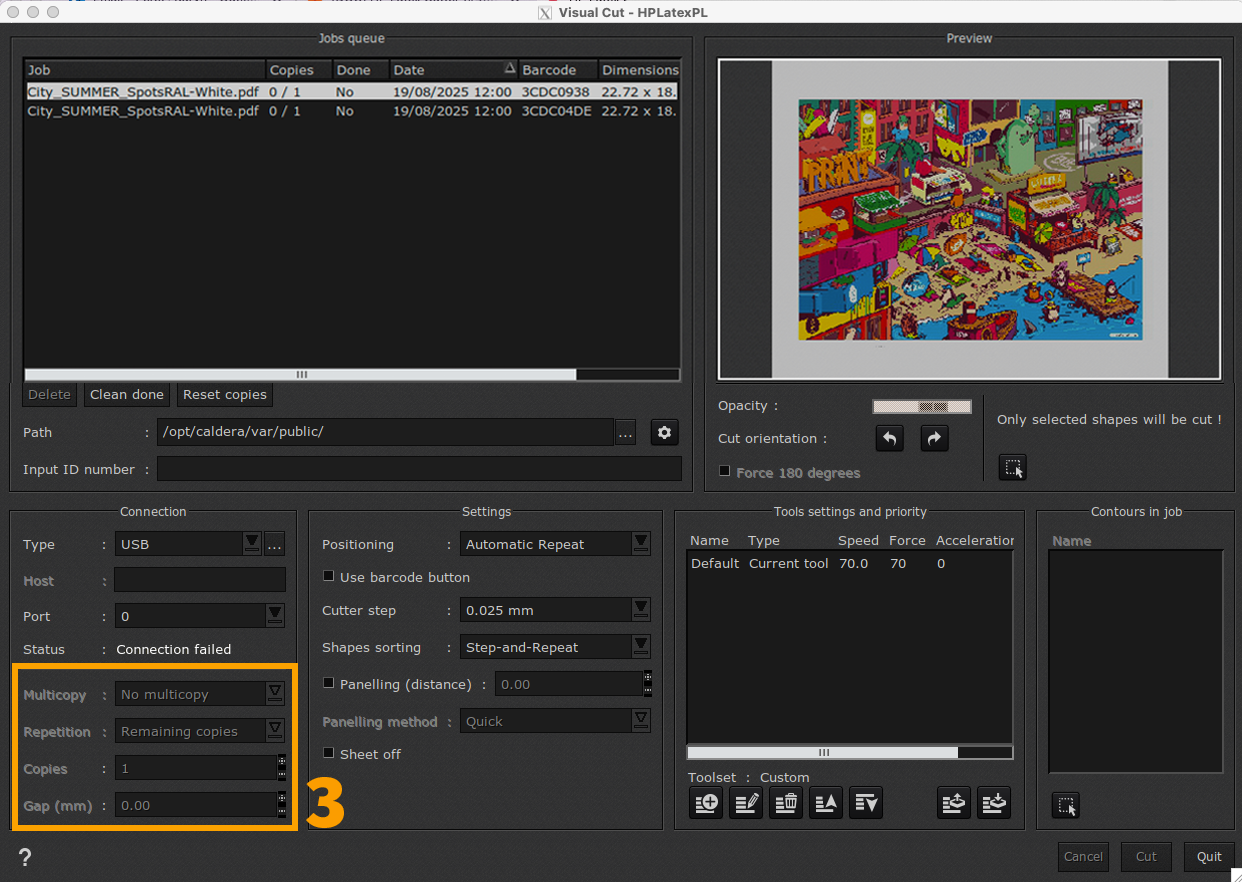

VisualCut
These drivers include all the basic settings available in VisualCut, as well as the following driver-specific features:
Cutter tools configuration
These drivers include all the basic settings available in Page Setup > Cutter Tools Configuration, as well as the "Remove OPOS bar and barcode" option.
For more information, see: How to use a cutter/trimmer equipped with OPOS Xtra?
Associations
- No associations between materials and methods.
- No associations between materials and media.
- No associations between methods and contours.
Connection
| USB | |
| File | |
| Network | |
| Serial |
Configuration
For installation and configuration instructions, see How to set up and use an HP cutter with CalderaRIP?.
Multilayer sandwich printing with cutting
For multilayer sandwich printing with cutting, compatibility depends on the printer driver and CalderaRIP version. See the setup guide's multilayer section for limitations and recommendations.
