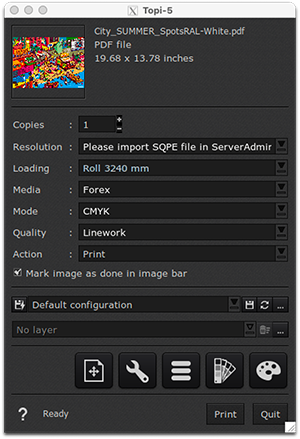

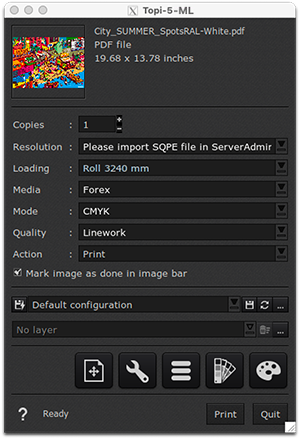

| Non-ML Drivers | ML Drivers |
Resolutions
To print and display the available resolutions in the Print Module interface, first import an SQPE file from Lory, SwissQprint's printer-controller software.
Warning
Printing is not possible until the SQPE file has been imported. If you use the Nest action, the job remains on hold in the Spooler. If you use the Print action, a Driver Error message appears. If you experience issues importing the file, please contact our support team.
To import the SQPE file:
- Open Lory.
- From the Extras menu, click Export RIP configuration.
- Export the .sqpe file to a location accessible from the CalderaRIP workstation.
- Open CalderaRIP.

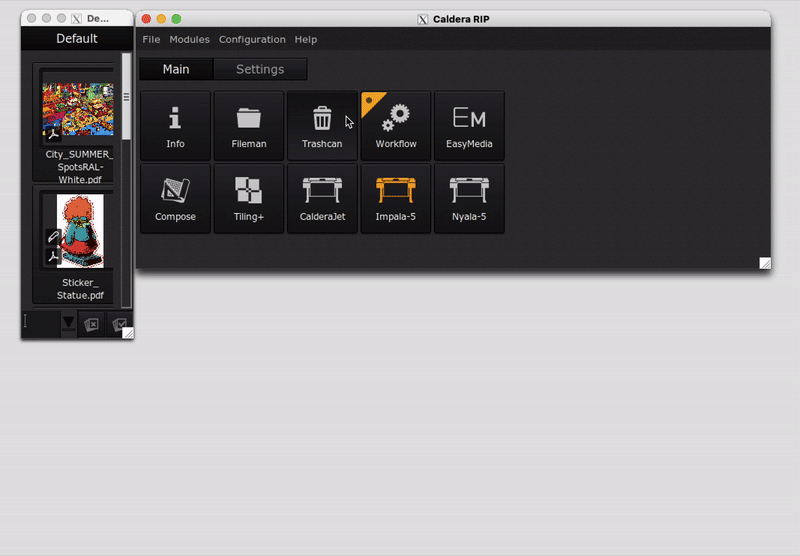

- On the Settings tab, click the ServerAdmin icon:
- In ServerAdmin, select your printer and click Configure.
- The configuration window opens on the Connection tab.
-
Click Get device infos, then use the file browser to select the previously exported .sqpe file:
Video shown uses a similar printer model - Click Load.
Loading
- Roll 3240 mm
- 3200x1000 mm /
- Custom (...)
You may be interested in reading: How to use CustomLoading?
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Modes
Info
Printer driver(s) compatible with Custom Inksets.
For Non-ML drivers, configure white, varnish, and primer as Spot Inks. ML drivers support CalderaRIP’s Layers arrangement workflow. Learn more.

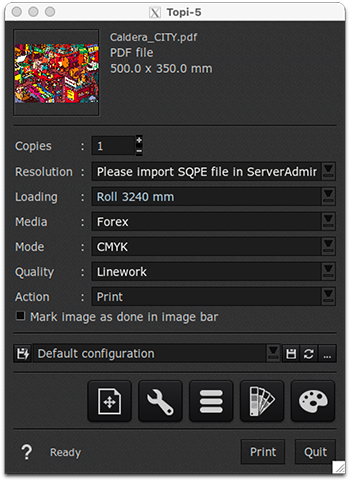

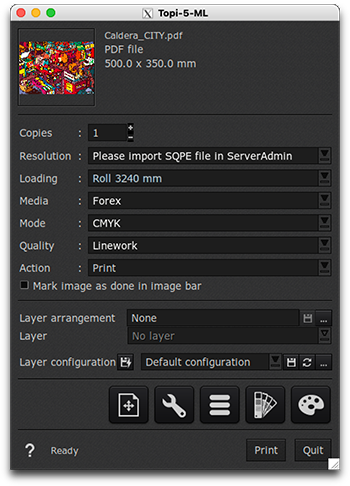

| Non-ML Drivers | ML Drivers |
|
|
Quality
Info
Custom qualities can be defined in Lory by the operator.
|
|
Action
As these are printers with a controller, they support only two actions:
- Nest
Other actions, Rip, Rip then Print, or Keep the ripped file, are not available with these drivers.
