Resolution
The Canon imagePROGRAF TX printers support the following graphic resolutions: 300x300 and 600x600 for contone mode and 1200x1200 for halftone modes.
The raster data sent to the printer is always printed at 2400x1200 dpi.
Loading / Media
The Canon imagePROGRAF TX printers support multiroll (2 maximum) and sheets. The roll maximum size for the TX 2000 is 24'', 36'' for the TX 3000 and 44'' for the TX 4000.

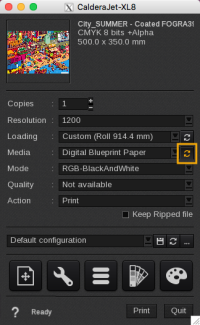

EasySelect
EasySelect is the capability of CalderaRIP to use the size and type of loaded media in the printer. This printer supports 3 levels of selection:
-
CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
-
AutoLoading: uses the size of the media currently loaded in the printer.
-
AutoMedia: uses the type of the media currently loaded in the printer.
Modes
The Canon imagePROGRAF TX supports the following Modes:
- RGB (contone mode).
- CMYK (contone and halftone modes).
Qualities
The Canon TX driver supports the following qualities:
- Auto
- Draft
- Normal
- High
The number of printing passes is chosen in accordance with the selected media and quality. When "Auto" is selected the printer chooses the recommended quality for the current selected paper type.
Directions
For any print, you can choose to use an "Unidirectional" printing or "Bidirectional" directly in the Print module main interface.
Actions
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
