Epson SureColor P10000 and P20000 - Printer Settings

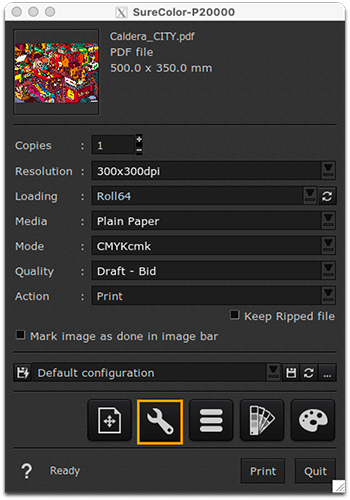

Access the printer settings by clicking the wrench icon in the Print Module:

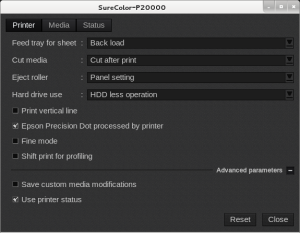

Printer tab

• Feed tray for sheet: select whether the Front load or Back load will be used to feed the sheets.
• Cut media: you can enable the embedded cutter and choose one of these options:
  • Off: the cutter is not used
  • Cut after print: enable the auto-cut after the print
  • Print line: print a cut line after the job
  • Cut before and after print: enable the auto-cut before and after the job. Take note that your print has to be set to borderless.
  • Cut after print less waste: enable the auto-cut to start closer to the job's border to generate less media waste. Take note that your print has to be set to borderless.
• Eject roller: this parameter should be set to Panel setting which is the default setting. If you experience the head rubbing against the paper, you can set Eject roller to On. You can also set it to No if you want.
• Hard drive use: this option defines the use of the printer hard drive:
  • HDD less operation: the hard drive is not used at all
  • Save before the print: it first saves the job then start the print
  • Save before the print (leave data): it first saves the job then start the print and keep the data on the hard drive
  • Save and print: it saves the job on the hard drive at the same time as printing
  • Save and print (leave data): it saves the job on the hard drive at the same time as printing and keep the file on the hard drive
• Print vertical line: it prints a vertical line alongside the job.

• Epson Precision Dot processed by printer: used with an Epson Precision Dot profile, it reduces the amount of data transferred to the printer as the screening is made on the printer. It also increases the quality and reduces the blur / banding that could appear on the job.
• Fine mode: this mode uses only one of the two available print heads. The speed is reduced by half. Use this option if you experience banding.
• Shift print for profiling: you must use this option for full speed print. This will shift the print about 8 centimeters to compensate for a material defect that might produce a banding on the first centimeters of the print.
• Save custom media modifications: saves the media parameters as set in the Media tab. Take note that Slot must not be set to RIP settings and Slot operation must be on Set and select by RIP.
• Use printer status: the driver will react according to the printer status: wait the end of the previous print to launch a new one, check the job compatibility with the media loaded, etc.

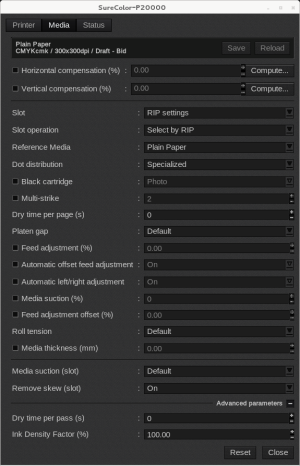

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Slot: choose the slot number that contains the adjustments for your media. If you choose RIP settings, the driver apply the settings displayed on the RIP driver.
• Slot operation: choose if the selected slot will be:
  • Select by RIP: the media settings used are those contained in the selected slot
  • Set and select by RIP: the RIP save its driver settings in the selected slot

• Reference Media: Select the reference media that most closely resembles the actual media. The reference media contains predefined settings that you can use to adjust your media parameters:


    Info

  Selecting the appropriate Reference media is crucial when creating a new profile, as inaccurate selections can lead to inconclusive results. Also, ensure that "Fine" mode or "Shift for profiling" is enabled for creating a new profile.

  While "Shift for profiling" can be deactivated within the module, be aware that a slight blur may appear on the initial centimeters of the print.

• Dot distribution: this option allows you to choose the drop limitation. Basic uses the general limitation whereas Specialized changes the limitation accordingly to the media chosen.
• Black cartridge: set the black cartridge to either Photo or Matte
• Multi-strike: apply multiple strike on the print: the job will be printed between 2 and 9 times on the same spot accordingly to your setup
• Dry time per page (s): indicate the time in seconds allowed for the page to dry (max 3600 seconds)
• Platen gap: set the gap between the head and the media
• Feed adjustment (%): this setting can be used in case of banding issues (horizontal striped lines or uneven colors) because of media stretch. You can enter values from -1 to 1.53%
• Automatic offset feed adjustment: when enabled and on On: the printer detects the actual amount of paper feed via a CCD sensor and uses this information to make real-time adjustments to the paper feed.
• Automatic left/right adjustment: when enable and on On: it reduces skew caused by the paper feed.
• Media suction (%): it is important to choose the proper amount of suction for the paper used in order to maintain the correct distance between the paper and the print head. Choosing too high value for thin or soft paper will increase the distance between the paper and the print head, causing print quality to decline or preventing the paper feeding correctly. In such cases, you will need to lower the paper suction.
• Feed adjustment offset (%): this setting is complementary to Feed adjustment.
• Roll tension: select the roll media tension: Standard is the mode used by default, if wrinkles appear when printing on roll paper, you can select High or Higher in order to correct it.
• Media thickness: enter the media thickness. If it is deactivated, the reference media thickness will be used.
• Media suction (slot): it is identical to Media suction but is used when the media settings are set for the slot.
• Remove skew (slot): select whether to enable (On) or disable (Off) paper skew reduction while roll paper is loaded in the printer. Setting applied for the slot.
• Dry time per pass (s): select the time the print head pauses to allow drying after each pass. Depending on the paper type, the ink may take a while to dry. If the ink blurs on the paper, set a longer time for drying the ink. Increasing the drying time increases the time needed to print.
• Ink Density Factor (%): maximum level of ink allowed. Increasing this factor might increase the Gamut but it might as well lead to over-inking issues.

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

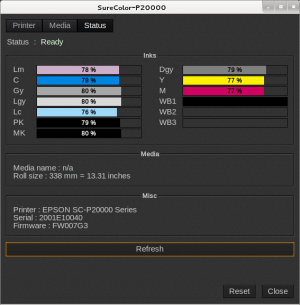

Status tab

• Status: global state of the printer:
  • Ready
  • Not available

All data is coming from the printer, if it is not available, nothing can be displayed.

• Inks: information about the ink configuration and the inks levels in %.

• Media: information about the media loaded on the printer.

• Misc: complementary info about the printer (model, serial number, firmware version).

• Refresh: button to refresh the tab.
