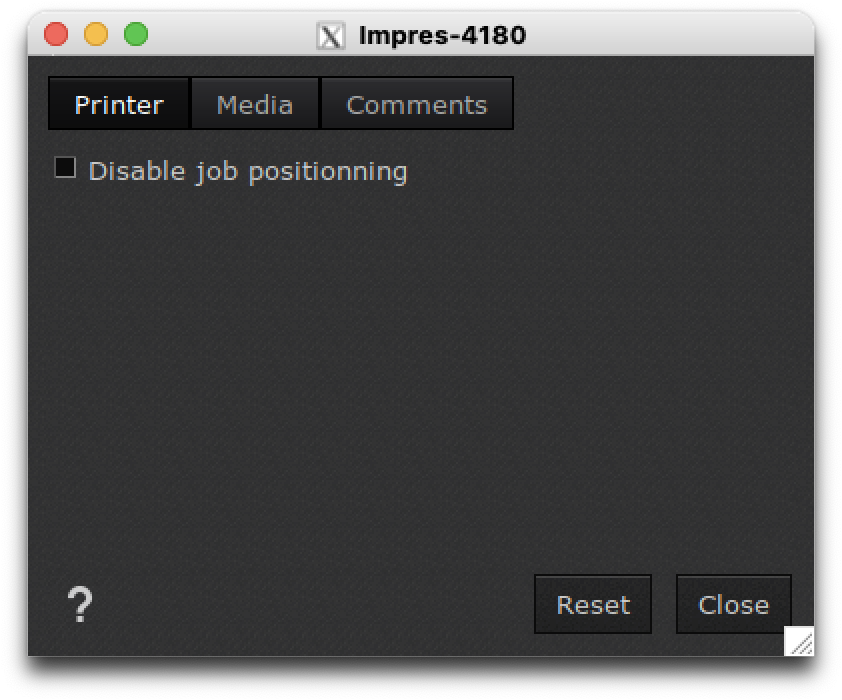

Printer tab
- Disable job positioning: When enabled, the printer will not receive any positioning data, requiring manual alignment on the printer.

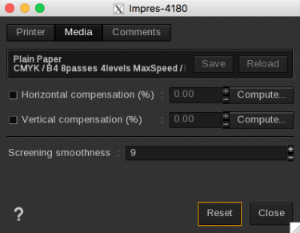

Media tab
-
Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
- Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
- Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.
- Screening smoothness: Maximum percentage of small and medium drops. Enter a value between 1 and 10 to adjust the smoothness of your job, where 1 corresponds to 10% and 10 corresponds to 100%. Only modify the default setting of 9 if you are experiencing microbanding.

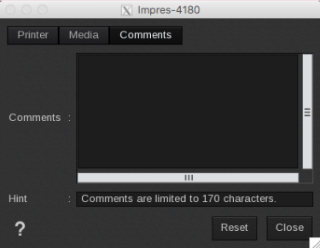

Comments tab
On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
