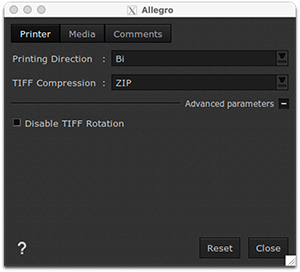

Printer tab
- Printing Direction: Choose if the printing is Bi-directional or Uni-directional.
- TIFF compression: Choose between a "ZIP" compression of the TIFF file or "None".
Advanced Parameters
- Disable TIFF rotation: This allows you to prevent the automatic rotation of TIFF images. This can be useful when working with images that require specific orientation settings, ensuring that the printed output matches the original layout.

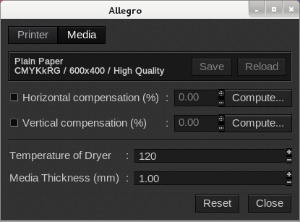

Media tab
-
Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
- Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
- Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.
- Temperature of the Dryer: You can adjust the temperature of the dryer (in Celsius degrees). The range goes from 120° to 180°.
- Media Thickness (mm): Sets the media's thickness. Range goes from 0.10 mm to 15 mm.

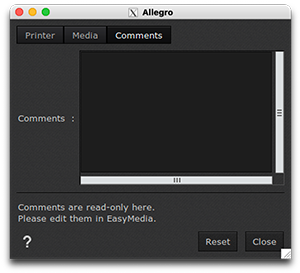

Comments tab
On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
