Supported models

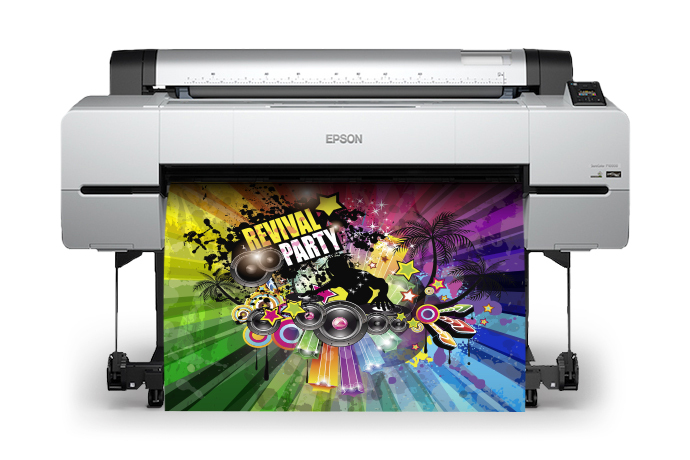

Epson SureColor P10000 (44") and P20000 (64")
- Large format printers
- Up to 10-ink configuration
- Visit the official website of Epson
Drivers
Info
There are two printer drivers available for each model: one with preloaded profiles and one without profiles. Choose the one that best suits your production needs.
- Epson-SureColor-P10000
- Epson-SureColor-P20000
Driver history
-
CalderaRIP V17.1:
-
These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
-
-
CalderaRIP V15.0:
- Revision A (01/2022): Printing 2 copies of the same job was sent to the error area while it correctly printed the two requested images
-
CalderaRIP V12.1:
- Revision A (07/2019): Restored compatibility with macOS 10.11 (El Capitan) – the driver now launches correctly.
-
CalderaRIP V12.0:
- Revision B (06/2019): Resolved issues with borderless printing at the top and bottom of the page. Increased tolerance for media width and job width verification.
- Revision A (04/2019): Corrected the ink consumption report for Epson Precision Dot modes.
-
CalderaRIP V11.2:
- Revision B (06/2019): Resolved issues with borderless printing at the top and bottom of the page. Increased tolerance for media width and job width verification.
- Revision A (04/2019): Corrected the ink consumption report for Epson Precision Dot modes.
-
CalderaRIP V11.1:
- Revision A (07/2017): Added support for new print modes for Backlit media when using Epson Precision Dot mode (firmware xx002H6 or later required). Resolved an issue with "Front-loading" functionality in Epson Precision Dot mode.
-
CalderaRIP V11.0:
- Revision D (07/2017): Added support for new print modes for Backlit media when using Epson Precision Dot mode (firmware xx002H6 or later required). Resolved an issue with "Front-loading" functionality in Epson Precision Dot mode.
- Revision C (05/2017): Improved handling of scenarios where the Epson Precision Dot mode is not recognized by the printer.
- Revision B (04/2017): Corrected status display errors. Resolved potential issues during "Rip then Print" workflows. Addressed an error related to driver settings on macOS when using Epson Precision Dot RGB.
- Revision A (11/2016): Implemented updates for Epson Precision Dot functionality. Resolved issues related to USB printer status. Enabled USB sleep mode functionality.
-
CalderaRIP V10.2:
- Revision E (07/2017): Added support for new print modes for Backlit media when using Epson Precision Dot mode (firmware xx002H6 or later required). Resolved an issue with "Front-loading" functionality in Epson Precision Dot mode.
- Revision D (05/2017): Improved handling of scenarios where the Epson Precision Dot mode is not recognized by the printer.
- Revision C (04/2017): Corrected status display errors. Resolved potential issues during "Rip then Print" workflows. Addressed an error related to driver settings on macOS when using Epson Precision Dot RGB.
- Revision B (11/2016): Implemented updates for Epson Precision Dot functionality. Resolved issues related to USB printer status. Enabled USB sleep mode functionality.
- Revision A (04/2016): Addressed memory leaks that caused instability on macOS after prolonged use.
- Epson SureColor P10000 and P20000 supported
Modes
|
|
Connection
| USB | |
| File | |
| Network | |
| Serial |
Warning
Network connection and EPSON Precision Dot mode: For optimal performance, an IPv4 address is essential. While you can use a hostname (DNS) for dynamic name resolution—an example of this—you must ensure that it resolves to an IPv4 address.
SNMP Protocol
This printer driver supports SNMP version 1 and version 3. If necessary, you can manually change the SNMP protocol version to match your printer settings using the corresponding field in the Connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you cannot access it using SNMP V1.
