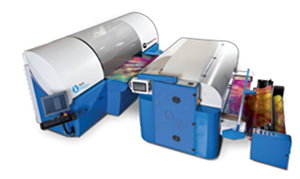

Model Supported
- Roll-to-roll, Direct-to-Garment printer
- "Print & Cut" as an option (flatbed cutter from Zünd)
- Aqua-based inks. Maximum Printing Width: 180 cm / 70.8 in
Driver
- Kornit-Allegro-Neon
- Kornit-Allegro
Driver History
-
CalderaRIP V15.1:
- Kornit Allegro: An "Use Printer S&R" optimization option has been introduced for Tex&Repeat. This option allows the printer controller to manage the Step&Repeat, making the ripping process much faster for repeated patterns. Learn more.
-
CalderaRIP V11.20
- Kornit Allegro, Revision A: Resolution list set to 600x400, 600x600, 600x800 and 800x800. Other resolutions have been removed.
- Kornit Allegro Neon is supported since this version
-
CalderaRIP V9.20
- Kornit Allegro is supported since this version
Connection
| USB | |
| File | |
| Network | |
| Serial |
Print Module Interface
Resolution
| Kornit Allegro | Kornit Allegro Neon | |
|
|
|
Loading
- Roll 1.5m
- Roll 1.6m
- Roll 1.7m
- Roll 1.8m
- Custom (...)
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:
- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Mode
Info
Printer driver(s) compatible with Custom Inksets. For more information, partners and resellers should consult the Partners Portal; end users can find details on our website.
| Kornit Allegro (Halftone) | Kornit Allegro Neon |
|
|
These drivers can use a "Fixation" Spot Ink. To configure it, you need to go to the Page Setup module:
Then, open the Fixation tab, click Enable separation, and select the Method corresponding to your production.
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
