Cut marks can be automatically set up for the Mimaki UCJV150 / 160 / 300 drivers by VisualCut, which also drives and guides the printer along the document's embedded contours.
Info
The Mimaki UCJV cutter driver is not included in the same package as the UCJV150 / 160 / 300 printer drivers.
This is why, once the printer has identified the job barcode, CalderaRIP does not automatically provide the cutting data since you still need to adjust the cutting tools (pressure, speed, etc.).
Despite the above, when you press Cut, the software will automatically select the correct job from the list (even if you have selected the wrong job, for example).
- Install the Mimaki UCJV:
Good to know
The Mimaki UCJV is a VisualCut driver. You might be interested to read:

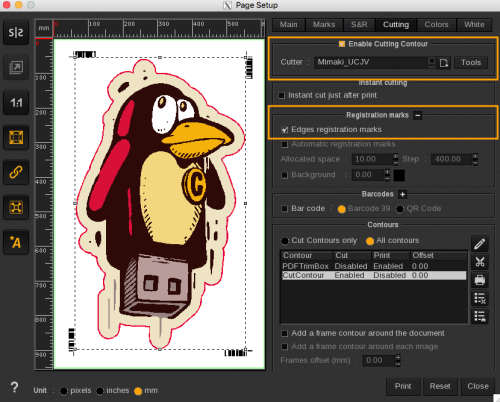

How to install a VisualCut cutter? - On Page Setup > Cutting tab, select the Mimaki UCJV you just installed and enable the Registration marks option. You will note that a bar code is automatically added and will appear in the Preview window:
Warning
USB connection is not compatible with the ID Cut barcode.
- Close the Page Setup and the Page Module Interface of your printer.
- Double-click the Mimaki_UCJV cutter icon to open the VisualCut window:
- In the Connection section, select the RawIP type. Eventually, in the Settings section, select either:
- Automatic Single, and use the printed ID Cut to select automatically the right job and orientation or,
-
Single with Mark, and select the job in VisualCut's list, then set the orientation and the contours to be cut:
