Mimaki UJV55-320 - Overview

Supported model

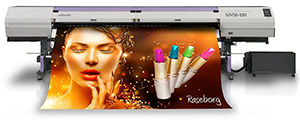

Mimaki UJV55-320

• Roll-to-Roll inkjet printer
• Super wide format printing (up to 3.2m)
• LED UV

Drivers

• Mimaki-UJV55-4c
• Mimaki-UJV55-6c

Driver History

• CalderaRIP V11.2:
  • Revision A (08/2018): Fixed an issue where CostProof consumption measurements were inaccurate when using the overprint and white-only settings.
• CalderaRIP V11.1:
  • Revision B (09/2017): Implemented several fixes in Ethernet communication to enhance stability.
• CalderaRIP V10.2:

  • Mimaki UJV55-4c, Revision B (08/2016): Removed the unused parameter for layer configuration and added the missing media parameter for overpainting.

      Info

    For existing profiles with media type FF, this parameter must be set manually to 2 in EasyMedia or the profiles need to be re-profiled.

  • Mimaki UJV55-4c, Revision A (07/2016): Fixed an issue that prevented printing from EasyMedia.
  • Supported since this version.

Connection

• Ethernet:
  • Ethernet connection need gigabit connection and category 6 RJ45 cable. We recommend that you read the "Additional Information" article for more details.
• USB:
  • Please note that, for these models, it is required to use only one RIP station per USB printer.
  • We recommend that you read our guide: Best practices for the USB communication of Mimaki devices.

Limitations

• CostProof and CostView (now deprecated) are supported only when the action is set to "Print" in the Print Module.
• The Twin Roll option is not supported.
