EPSON SureColor SC-V7000 - Overview

Supported Models

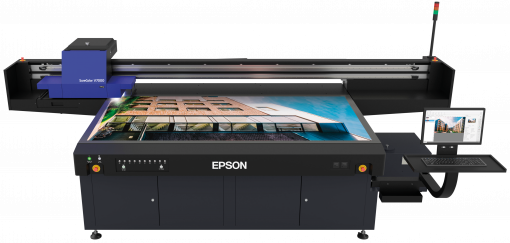

EPSON SureColor SC-V7000

• UV Flatbed Printer
• 10-Color, 4' x 8'

Driver

• Epson-SureColor-V7000

Driver History

• CalderaRIP V19:
  • The printer driver in this release includes improvements to the multilayer feature, particularly when loading of multilayer files prepared in PrimeCenter. Additionally, certain features incompatible with the multilayer manager have been disabled during file loading to minimize the risk of operational errors. Learn more.

• CalderaRIP V17.1:

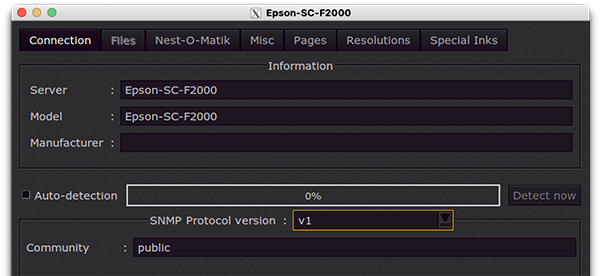

  • These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:


    Info

  Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.

• CalderaRIP V15.0:
  • Supported since this version

Inks

Cyan	Light Cyan
Magenta	Light Magenta
Yellow	Red
Black	White
Gray	Varnish

Tips & Tricks

• Process to obtain the optimum quality
  • Select the right material in EasyMedia or in Media tab
  • Adjusting the Ink Density Factor to the right value is recommended. To get this value, please refer to your reseller or EPSON technical support team.
• For Varnish Ink, use the following parameters to have an optimal result:
  • Resolution: 720 x 720 dpi
  • Mode: EPSON Precision Dot Varnish
  • Quality: Production
  • More info

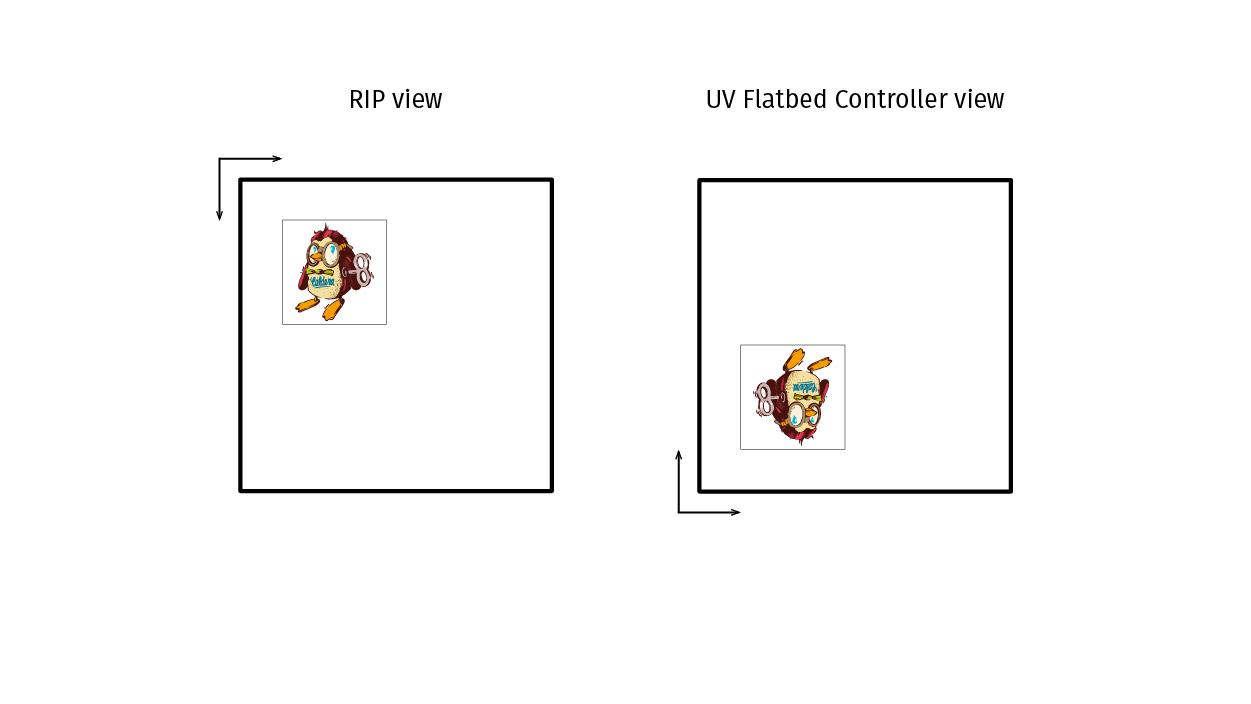

• The origin position of the printer is on top-left on CalderaRIP whereas it is on the bottom-left on UV Flatbed Controller.
