Resolution
The EPSON SureColor SC-V7000 supports the following graphic resolutions:
- 360 x 720 dpi
- 720 x 720 dpi
- 720 x 1080 dpi
- 720 x 1440 dpi
Loading
- Flatbed: 2,5 m x 1,25 m
- Custom
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

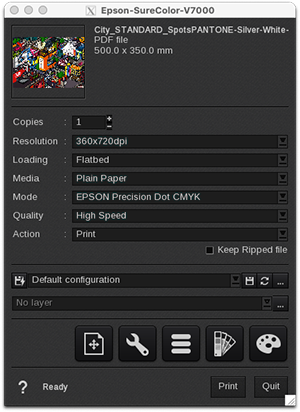

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Modes
Only contone modes:
- EPSON Precision Dot CMYK: to be used with CMYKlklclmRed (+ Varnish + White inks)
- EPSON Precision Dot Varnish: to be used with Varnish ink only
- EPSON Precision Dot White: to be used with White ink only
Qualities
| 360 x 720 dpi | 720 x 720 dpi | 720 x 1080 dpi | 720 x 1440 dpi | |
| High speed | ✔ | |||
| Speed | ✔ | |||
| Production | ✔ | |||
| Quality | ✔ | |||
| High Quality | ✔ | |||
| Fine Production | ✔ | |||
| Fine Standard | ✔ | |||
| Fine Quality | ✔ | ✔ | ||
| Fine High Quality | ✔ |
"Fine" Qualities are not compatible with Varnish spot ink.
RIP/UV Flatbed Controller correspondence table
| Print mode on the RIP side | Name of UV Flatbed Controller print mode |
| High Speed 360x720 | High Speed Adj_A |
| Speed 720x720 | Speed Adj_A |
| Production 720x720 | Production Adj_A |
| Quality 720x1080 | Quality Adj_A |
| High Quality 720x1440 | High Quality Adj_A |
| Fine Production 720x720 | Fine Production Adj_B |
| Fine Standard 720x720 | Fine Standard Adj_C |
| Fine Quality 720x720 | Fine Quality Adj_H |
| Fine Quality 720x1440 | Fine Quality Adj_B |
| Fine High Quality 720x1440 | Fine High Quality Adj_H |
