Resolution
The Fujifilm Acuity Prime series supports the following graphic resolutions:
| Print Mode | Resolution (dpi) |
| Sketch - 1Pass | 363 x 300 |
| Draft - 2Pass | 363 x 600 |
| Express - 3Pass | 363 x 900 |
| Production - 4Pass | 726 x 600 |
| Quality - 6Pass | 726 x 900 |
| Fine Art - 8Pass | 726 x 1200 |
Loading
- Bed 3200x2020 mm (only available on Acuity Prime L)
- 2540 x 1274 mm
- Custom
EasySelect

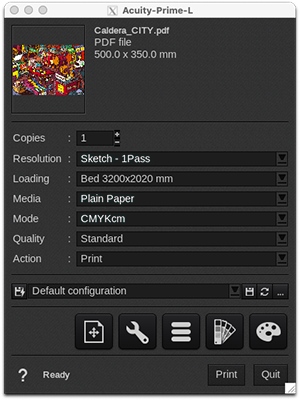

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:
- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Mode
- CMYK
- CMYKcm
Quality
- Standard
Action
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
