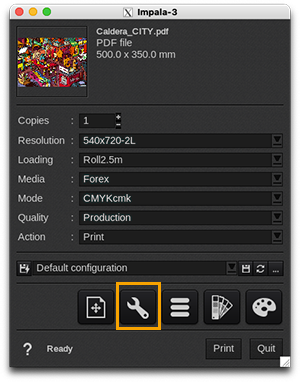

Settings window

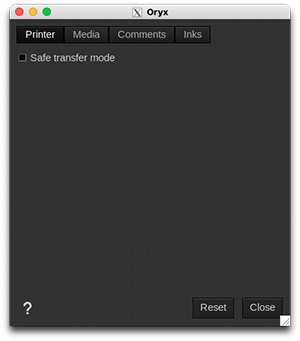

Printer
- Safe transfer mode: please do not enable this feature unless you are specifically told to do so by the support team.

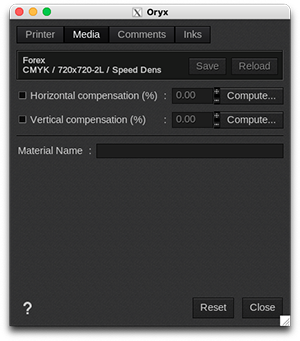

Media
- Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
- Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
- Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.
- Material Name: this setting is used in Amber controller to set material specific print parameters

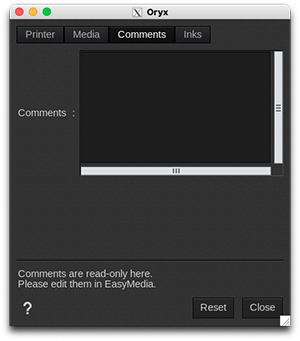

Comments
On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

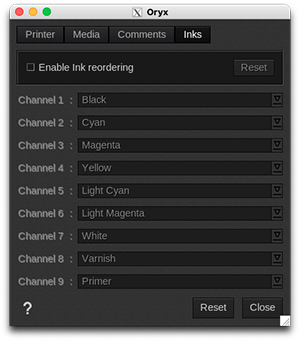

Inks
- Enable Ink reordering: if you see that the colors of your print seem mixed, you can enable the ink reordering. For each channel, specify the right color.
- Reset: when clicking on this button, the default ordering will be set as displayed: Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, White, Varnish and Primer.
