Printer tab

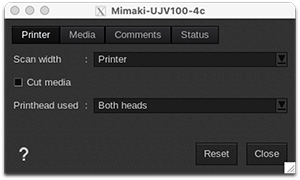

4-C driver	8-C Driver

• Scan width: this option allows the user to limit the movement of the printhead carriage to either the printer's full width or only the job's width. You can choose between:
  • Printer: the printhead carriage scans all the printer's width
  • Job: it limits the head scan over the job's width only

• Cut media: enable or disable this function by checking or unchecking the box. The embedded cutter will trim the media in its width at the end of the printing process when the function is enable.

• Printhead used: this function let you choose between multiple printhead parameters:
  • Head 1: will use only the set of print Head 1
  • Head 2: will use only the set of print Head 2
  • Both heads: will use print Head 1 and print Head 2 simultaneously (recommended parameter)

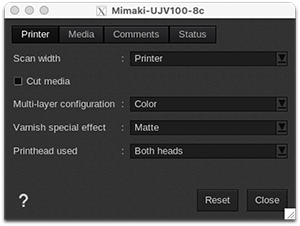

Only 8-C driver

Starting with the driver for V17, Revision A.

• Multi-layer configuration. When printing multi-layer, you can choose:
  • Color: The color layer will be printed
  • Special: The spot ink layer will be printed
  • Two layers: Both layers, color and special, will be printed
• Varnish special effect. Choose the finishing of your print:
  • Matte
  • Glossy

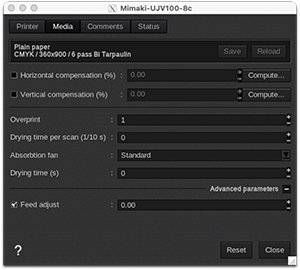

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Overprint: This performs additional passes to increase ink density. The user can define the amount of overprint layers with a factor between 1 and 2.

• Drying time per scan (1/10 s): add a delay between each scan to allow the ink to dry a little between each pass. Type the number wanted or use the + and - buttons. Duration is measured in 1/10 second.

• Absorption fan: you can select one of the following option: Off, Weak, Standard, Strong.

• Drying time (s): duration allowed to the drying after the print (in seconds).

Advanced parameters

• Feed adjust: set the media feed adjustment level value. The value 0.00 disables this function (use value set on panel) but a number between -255 and 255 enables it (use selected feed adjustment level). This option is used when you see white lines or darker lines between passes.

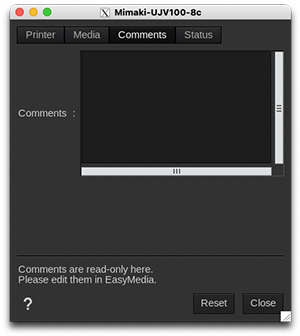

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

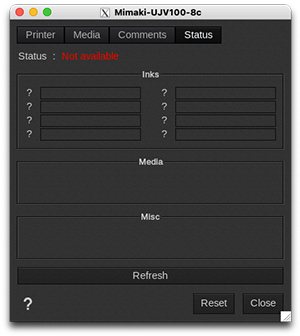

Status tab

• Status: global state of the printer:
  • Ready
  • Not available
  • Printing

All data is coming from the printer, if it is not available, nothing can be displayed.

• Inks: information about the ink configuration and the inks levels in %.

• Media: information about the media loaded on the printer.

• Misc: complementary info about the printer (model, serial number, firmware version).

• Refresh: button to refresh the tab.
