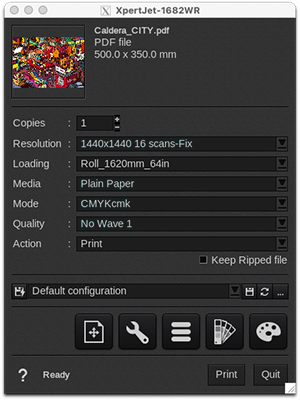

Mutoh XpertJet 1642WR (Pro) and 1682WR - Print module interface
Updated
Resolutions
Mutoh XpertJet 1642WR Pro
1200x1200 16 scans
1200x1200 16 scans-Fix
1200x900 12 scans
1200x900 12 scans-Fix
1200x600 8 scans
1200x600 8 scans-Fix
900x1200 12 scans
900x1200 12 scans-Fix
900x900 9 scans
900x900 9 scans-Fix
900x600 6 scans
900x600 6 scans-Fix
600x1200 8 scans
600x1200 8 scans-Fix
600x900 6 scans
600x900 6 scans-Fix
600x600 4 scans
600x600 4 scans-Fix
600x300 4 scans
600x300 4 scans-Fix
450x1200 12 scans
450x1200 12 scans-Fix
450x900 9 scans
450x900 9 scans-Fix
450x600 6 scans
450x600 6 scans-Fix
450x300 6 scans
450x300 6 scans-Fix
300x600 2 scans
300x600 2 scans-Fix
300x300 2 scans
300x300 2 scans-Fix
300x900 3 scans
300x900 3 scans-Fix
Mutoh XpertJet 1642WR
1200 x 1200 16 scans-Fix/scans
1200 x 900 12 scans-Fix/scans
1200 x 600 8 scans-Fix/scans
900 x 1200 12 scans-Fix/scans
900 x 900 9 scans-Fix/scans
900 x 600 6 scans-Fix/scans
600 x 1200 8 scans-Fix/scans
600 x 900 6 scans-Fix/scans
600 x 600 4 scans-Fix/scans
600 x 300 4 scans-Fix/scans
450 x 1200 12 scans-Fix/scans
450 x 900 9 scans-Fix/scans
450 x 600 6 scans-Fix/scans
450 x 300 6 scans-Fix/scans
300 x 900 3 scans-Fix/scans
300 x 600 2 scans-Fix/scans
300 x 300 2 scans-Fix/scans
Mutoh XpertJet 1682WR
1440 x 1440 16 scans-Fix/scans
1440 x 1080 12 scans-Fix/scans
1440 x 720 8 scans-Fix/scans
1080 x 1440 12 scans-Fix/scans
1080 x 1080 9 scans-Fix/scans
1080 x 720 6 scans-Fix/scans
540 x 1440 12 scans-Fix/scans
550 x 1080 9 scans-Fix/scans
720 x 1440 8 scans-Fix/scans
720 x 1080 6 scans-Fix/scans
720 x 720 4 scans-Fix/scans
720 x 540 3 scans-Fix/scans
720 x 360 2 scans-Fix/scans
540 x 720 6 scans-Fix/scans
540 x 360 3 scans-Fix/scans
360 x 1080 3 scans-Fix/scans
360 x 720 2 scans-Fix/scans
360 x 540 3 scans-Fix/scans
360 x 360 1 scans-Fix/scans
Loading
Predefined roll width
Custom
Custom Loading with EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:
CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Mode
Mutoh XpertJet 1642WR (Pro)
Mutoh XpertJet 1682WR
CMYK
✔
✔
CMYKcm
✔
CMYKcmk
✔
CMYKOGB
✔
Qualities
Mutoh XpertJet 1642WR
Mutoh XpertJet 1682WR
None
✔
✔
Wave
✔
✔
Fuzz
✔
✔
Fine & Wave
✔
✔
Fine & Fuzz
✔
✔
Super Fine & Wave
✔
✔
Wow
✔
✔
Fog
✔
✔
Fine & Fog
✔
✔
i-Weave
✔
✔
i-Screen (recommended)
✔
Mutoh XpertJet 1682WR Pro
Info
Instead of "Qualities", this driver allows the user to customize the following settings.
Click here to expand
Effect: I-Weave Ex (1-3), and I-Screen (1-6)
Scan multiplier: x1, x2, x4, or Auto.
Direction: Unidirectional or Bidirectional.
Carriage speed: Auto, Normal, or Fast.
Dot family: Auto, VSD1 Large, VSD2 Medium, or VSD3 Small.
Actions
Available actions are:
Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
