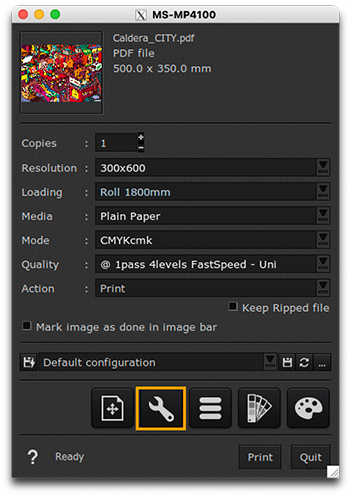

MS MP Series - Printer Settings

Updated April 30, 2026 08:45

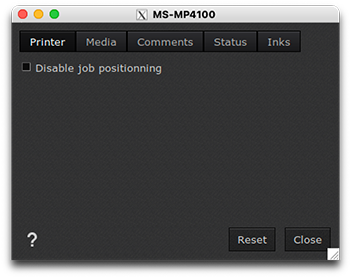

Printer tab

Disable job positioning: When enabled, CalderaRIP will ignore the X and Y origin coordinates specified in the print job data.

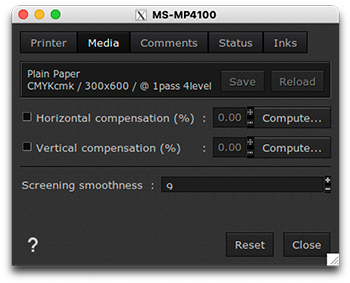

Media tab

Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
- Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
- Reload: will revert back to default as set during profiling or the last saved changes.
Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

0 ALL-Printer settings-Compute-Adjustment.png

Screening smoothness: Affects the vardot (variable-sized halftone dot) distribution. This field allows you to adjust the dot pattern by selecting a percentage between 0 and 10.

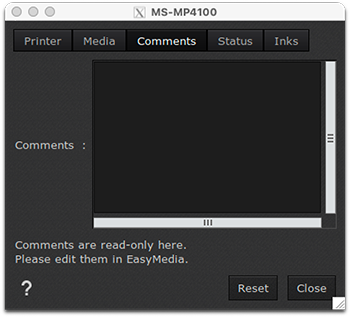

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

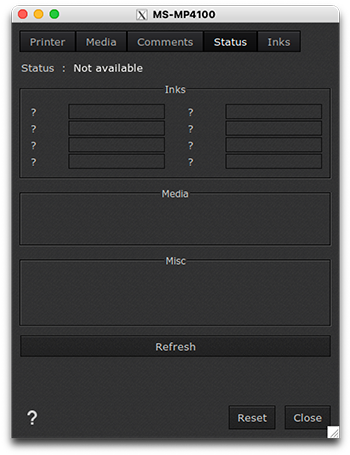

Status tab

Status: global state of the printer:
- Ready
- Not available
- Printing

All data is coming from the printer, if it is not available, nothing can be displayed.

Inks: information about the ink configuration and the inks levels in %.

Media: information about the media loaded on the printer.

Misc: complementary info about the printer (model, serial number, firmware version).

Refresh: button to refresh the tab.

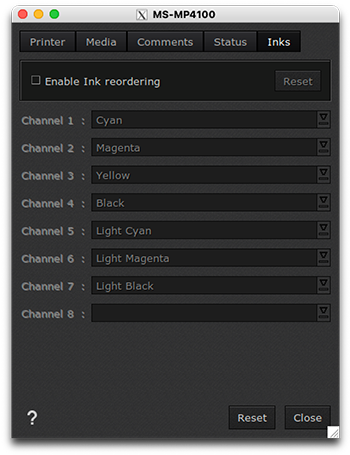

Inks tab

Only available for MS-MP3100, MS-MP4100, and MS-MP5000 drivers.

Enable Ink reordering: if you see that the color channels of your printer seem mixed up, you can enable the ink reordering. For each channel, specify the right color.
