Use Send to Print in CalderaColor to print a ColorBook imported from CalderaSubmit DTF through Fine-tune.
Before you print
Check Colorbook export destination in Settings → Process Options: exports use this folder without prompting. Clear it to choose a location each time.
Review the generated pages before returning them to the RIP.
Send the ColorBook back to the RIP
- Select Send to Print in the export dropdown.
- In the RIP's file manager, select the returned ColorBook. In Image Information, the Source field shows CalderaColor:
Insert the ColorBook into the studio

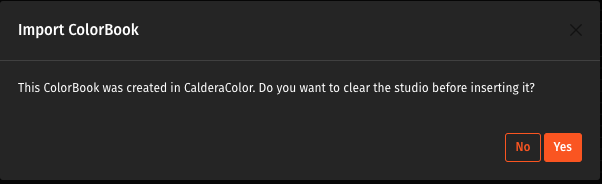

Drag the ColorBook onto the canvas or use the insert action. The Import ColorBook dialog asks whether to clear the studio:
- Yes: clear the studio.
- No: keep the current studio contents, including other print jobs, and continue.
Choose the print configuration
If the print destination or settings changed while fine-tuning, a second dialog offers to restore the original configuration:
- Yes: restore the original destination and settings.
- No: keep the current destination and settings, for example to test a compatible or similar preset.
The studio-clear and configuration-restore prompts are independent. Answering No to studio clearing preserves existing images; answering No to configuration restoration preserves the current destination and settings. Neither answer cancels insertion.
Check the studio and destination, then print.
- The RIP automatically disables color management only for the CalderaColor image; other images are unaffected. No manual change is needed.
- Calibration remains applied: linearisation and ink limits.
Continue with another target color
Follow Get Started → Next Colorbook to fine-tune another target with the same steps and layout preferences.
For an unconnected RIP, use Manual: Export TIFF ZIP instead.
