Supported model

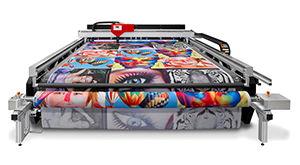

Automatic textile laser cutting machine for high-speed production.
Drivers
There are two drivers for these cutters:
- Matic: This original driver features a rectangular area for conveyor detection, with shapes projected by a laser.
- Matic Helios Plus: This driver is a clone of CalderaXML, but has a specific feature to place edge marks in a random, non-even way that is used by the controller of the cutter to recognize a job, replacing the use of barcodes.
Drivers history
-
CalderaRIP V12:
- Supported since this version.
Installation
Info
In the past, different cutting devices required separate licenses: CutServer for roll-to-roll cutters, GrandCut (A or B) for flatbed cutters, and a cut option for trimmers. This resulted in different installation methods depending on the device.
Today, annual subscribers and perpetual license holders with CalderaCare can use any CalderaRIP‑supported cutting device without an additional license.
| Roll-to-Roll (Legacy CutServer) | |
| Flatbed (Legacy GrandCut A) |
You might be interested in reading:
Format
- Matic: DXF
- Matic Helios Plus: XML
Features
Info

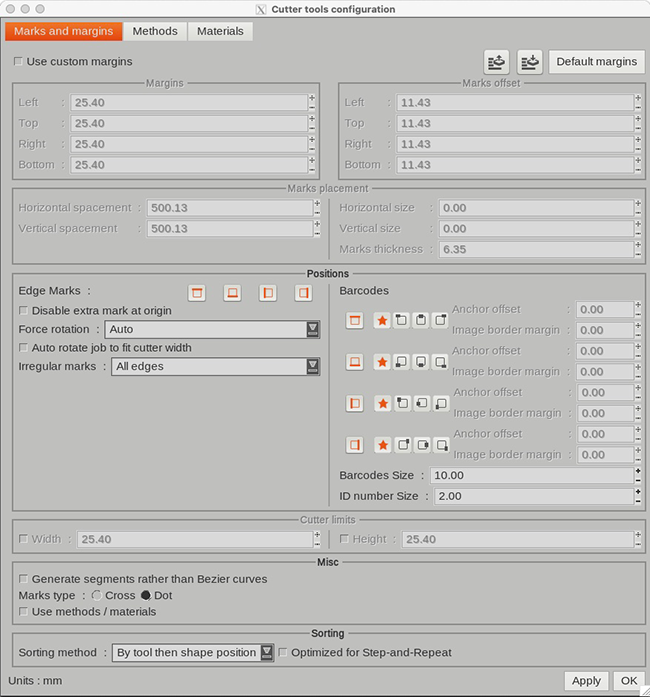

Please refer to this article to have information about the standard features available in the Cutter Tools Configuration window.

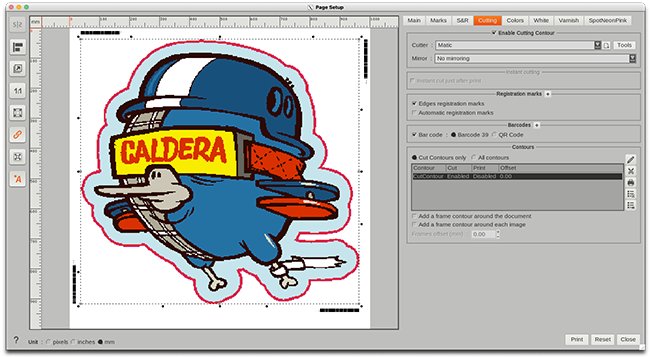

Marks
-
Matic: Rectangle (for conveyor).
- Matic Helios Plus: Dots. Compatible also with additional marks.
