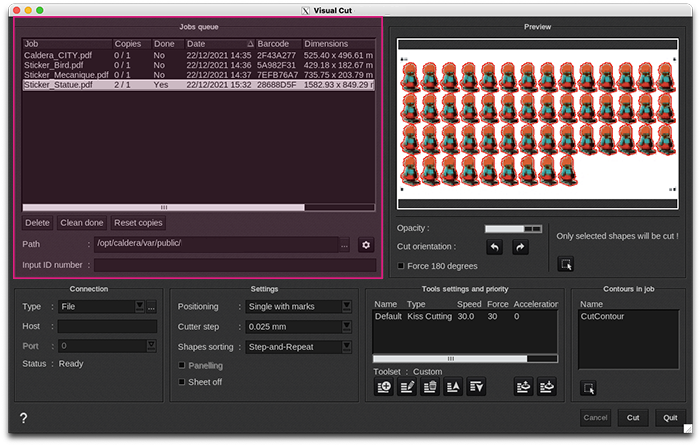

The Jobs queue displays the available cut files for the cutter module you have launched.

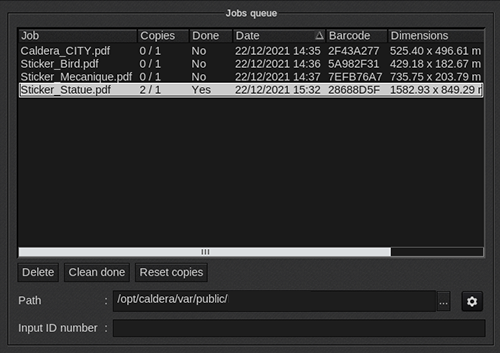

Cut queue information

Click the header of the column you want to sort by. Sorts by ascending or descending order.

• Job: displays the name of the job. Sort defaults to this column.
• Copies: displays the number of copies. The first number indicates the number of copies completed. The second number is the number of available copies. When the first number is equal to the second, the job status changes from no to yes.
• Done: displays the status of the cut file.
• Date: displays the date.
• Barcode: displays the barcode identification ID.
• Dimensions: displays the surface area (multiplication of the dimensions displayed in the column).
• Printer: displays the printer's name.

Three buttons are also available to manage the list:

• Delete: removes the selected job from the list.
• Clean done: removes all jobs with the status set to yes from the list.
• Reset copies: reset the number of already done copies on a selection of jobs.

Cut path

The Path field is also located in the Jobs queue section. The Path is the location on the computer where the RIP creates the cut file after the job is printed. The path location is assigned during the cutter installation.

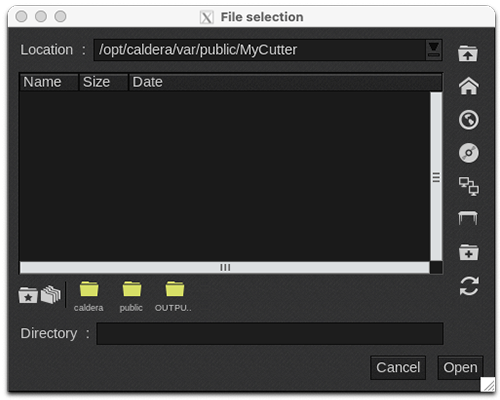

You can change the path where VisualCut checks for new jobs. Click the [...] button to open the File selection window. Browse to the location and click on Open.

Advanced parameters button: opens a window where you can define how frequently the RIP will refresh the Jobs queue. In the example below VisualCut checks the cut path every 10 seconds to see if new files have been created. When there are new files, they are added to the Jobs queue.

Search by Input ID Number

The Input ID Number field is also located in the Jobs queue section. Simply enter the identification number of the job and click on Enter. The job will become highlighted in the Jobs queue and the job will load in VisualCut. Please refer to the Cutting tab section to review how to generate an identification number for print jobs.
