Supported models

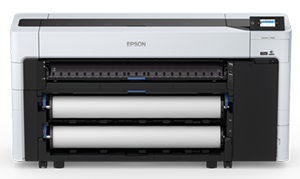

Epson SureColor SC-Tx700(D)
InfoNaming system
|
Correspondence table according to regions
| Region | SC-T7700 | SC-T5700D | SC-T3700 |
|---|---|---|---|
| America | T7770D | T5770D | T3770 |
| Australia, New Zealand | T7760D | T5760D | T3760 |
| China | T7780D | T5780D | T3780 |
| Europe | T7700D | T5700D | T3700 |
| Hong Kong | T7790D | T5790D | T3790 |
| Japan | T7750D | T5750D | T3750 |
| Korea | T7740D | T5740D | T3740 |
| South Asia | T7730D | T5730D | T3730 |
Drivers
| SC-T7700 (Photo) | SC-T5700D | SC-T3700 |
|---|---|---|
|
Epson-SureColor-T7700D |
Epson-SureColor-T5700D |
Epson-SureColor-T3700 (for single-roll printers) |
|
Epson-SureColor-T3700D (for dual roll printers) |
Drivers history
-
CalderaRIP V18.1:
- Revision A: Fix for a bug that caused these drivers to not be able to correctly detect the end of a job. Now the detection works as it should, which also corrects possible issues for Nexio users.
-
CalderaRIP V17.1
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually, thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually, thanks to a new field added to the connection tab of ServerAdmin:
-
CalderaRIP V16.2
- Revision A: Fix possible black edges on borderless print
-
CalderaRIP V15.1
- Revision a (09/2022): Minor adjustment of the hardware margins defined on the printer's control panel and that are used for the job.
- Epson SureColor SC-T7700(D/DL) supported
- Epson SureColor SC-T5700D supported
- Epson SureColor SC-T3700(D/E/DE/DL) supported
Inks
| SC-T7700 | SC-T5700 | SC-T3700 | |
|---|---|---|---|
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
| |
✔ | ✔ | ✔ |
Connection
| USB | |
| File | |
| Network | |
| Serial |
Tips & tricks
Media
- If the format of media selected in the Loading field is different from the one chosen in the Source media field, for instance, if one is a sheet and the other one is a roll, then there will be an error message.
- If you have selected Board as the Source media, and you are printing a landscape, then a warning message will recommend that you reload the media in portrait. This message can be disabled.
- EPSON Precision Dot Blueprint is only available with Reference media set up as Blueprint.
Borderless printing
- For borderless prints, margins in Page Setup should be set correctly. You should also set the Cut media option to Cut before and after print for full borderless prints.
